ACS 50
Window and door system for interior development

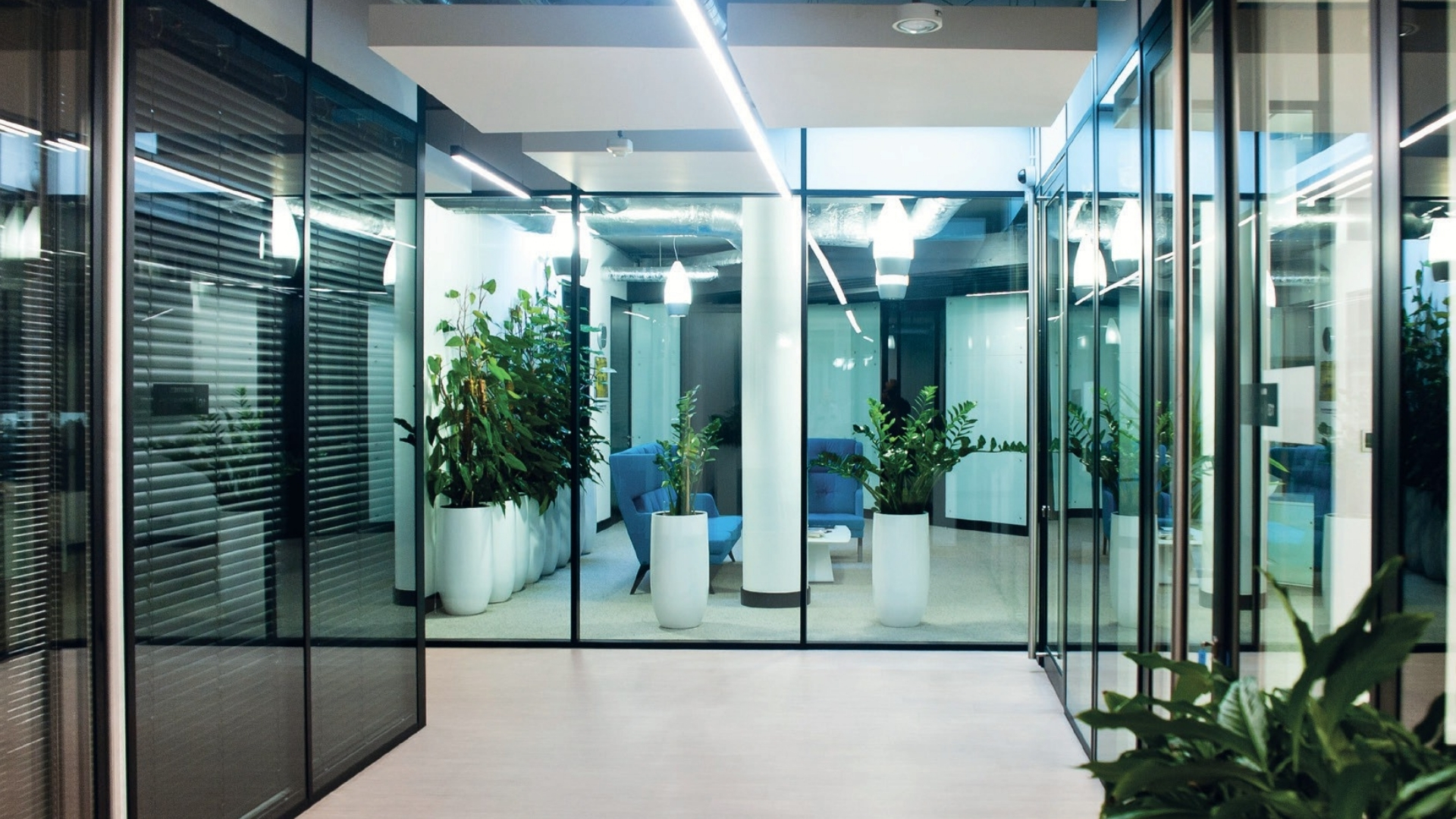

The Aluron ACS 38 Office system is designed for creating modern acoustic, thermally non-insulated partitions, office boxes, and glazed walls. Using this system, it is possible to build slim aluminium structures for internal walls and partitions with high functional and aesthetic qualities. The system allows the use of various door constructions with the narrowest SLIM-type frames. One of its advantages is the possibility of integrating inter-pane blinds, operated manually or automatically. The system can be used in Class A office buildings. It also holds a National Technical Assessment.
Aluron ACS 38 is a system that, thanks to its design, provides the highest access to daylight. The slim design (mullions only 38 mm wide) combined with the frame (6 mm in the visible frame) provides maximum light for glass doors. Thus, the system will prove itself wherever high aesthetic qualities and access to natural light count.
Aluron ACS 38 system is distinguished by a number of modern technical solutions. The product allows integration with manually or automatically controlled inter-pane blinds. The highest level of functionality and safety is guaranteed by the III class of durability and IV class of operation. The system is compatible with ACS 50 aluminium doors.
Walls, boxes and showcases made in Aluron ACS 50 system are available in all RAL colors. In addition, they can be made in wood-like varnish, as well as in Decoral system, which includes colors imitating marble, granite and other patterns of your choice.
|

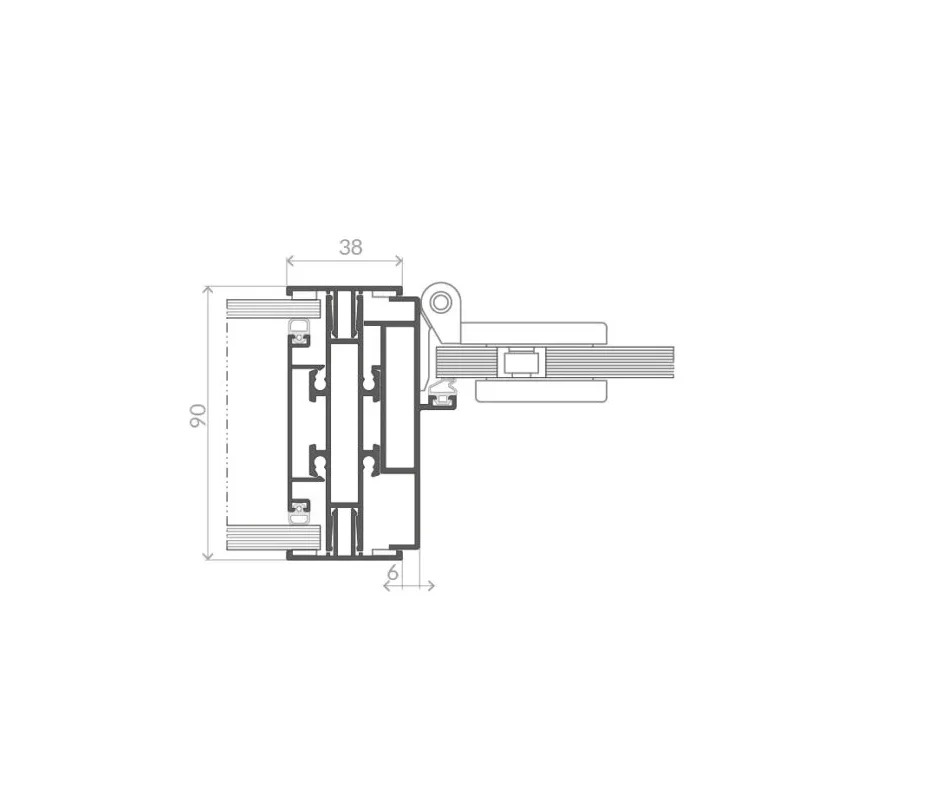

Frame installation depth |
90 mm |
|

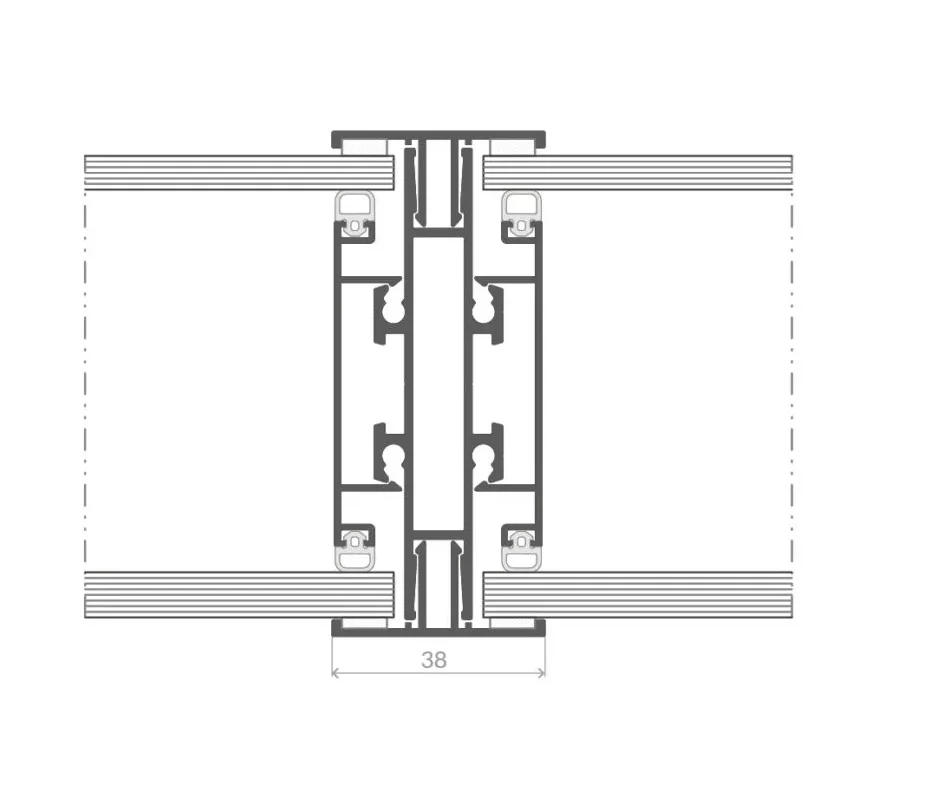

Mullion width |
38 mm |
|
Range of infill thickness (opaque) |
5–84 mm |
|
Maximum wall height |
5300 mm |
|
Glazing range |
5–13 mm |
|
Maximum wall height |
5300 mm |
|
Minimum visible frame width |
38 mm |
|
Maximum glazing module area |
up to 6.0 m² |
|
Spacing of vertical mullions |
up to 2500 mm |
|
Sound insulation for opaque version |
up to 52 dB |
|
Sound insulation for transparent version |
up to 46 dB |
Please press here to download our leaflets in PDF-format. The leaftlets contain all necessary information.
The Aluminium windows and doors that are provided by the ProfilNET company have a 5 year warranty. A really important factor for the windows quality is also the installation. Our professional installation team will provide a high quality standard installation.
In order to receive the warranty, you must agree to the guarantee conditions of the guarantee card. The installation needs to also match the correct mounting conditions, or match the ProfilNET Handling and maintenance conditions.
