Ultraglide
System for energy-saving construction

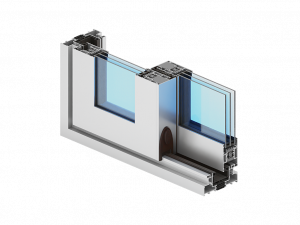

Visoglide Plus is a sliding door system with enhanced thermal insulation, suitable for residential buildings, including terraces and balconies. The system features a frame depth of 117.7 mm, making it ideal for winter gardens where installation space is often limited, or where integration with roller shutters is required. A major advantage of the system is its slim 34 mm interlock profile, meeting modern architectural trends and aesthetics. An additional option is the possibility of using the Monorail solution. The system allows the construction of 2-, 4-, and 6-panel configurations using double- or triple-track outer frames. Doors can be manufactured up to 2700 mm in height, with a maximum sash weight of 250 kg.
Visoglide Plus is highly recommended for spaces where excellent thermal performance is essential. Thanks to innovative thermal breaks, the lift-and-slide doors offer enhanced insulation properties, making them ideal for energy-efficient homes. The extremely slim 34 mm interlock profile gives the doors a light and elegant appearance, perfectly matching the principles of contemporary architecture. This three-chamber sliding system with thermal breaks performs equally well in both small and large glazed areas. Lightweight sliding doors are a fashionable architectural feature in any building.
Visoglide Plus is an ideal solution for verandas, terraces, winter gardens, and patios in residential buildings, as well as in modern public-use spaces. The structures can be manufactured in a wide range of colors. The system can be equipped either with a standard bottom frame or with a low, barrier-free threshold, allowing smooth and comfortable movement between the house and the terrace.
The standard frame depth in the Visoglide Plus system is 117.7 mm, while the sash depth is 43 mm, with glazing options up to 36 mm thick. It is an ideal solution for designing side or front walls in winter gardens, as well as verandas, terraces, and patios. The system also allows the use of mosquito screens in sliding doors, providing excellent protection against insects.
|
PROFILE |
Outer frame: 117.7 mm | Sash: 51 mm |
|
GLAZING |
Standard glazing package: 4/12/4/12/4 Ug = 0.7 W/m²K with Swisspacer warm-edge spacer. Compatible with glazing units from 6 mm to 36 mm. Available glass options include: safety glass, tempered glass, burglar-resistant glass, solar-control glass, acoustic glass, ornamental glass, internal glazing bars |
|
HARDWARE |
Specialized hardware by GU or Hau Tau designed specifically for sliding doors |
|
HANDLES |
Standard equipment includes a stainless steel handle with a long grip for comfortable and effortless operation |
Scheme D – two active sashes
Scheme A – one active sash and one fixed panel
Scheme G – one active sash and two fixed panels
Scheme D+G – three active sashes, 3-track system
Scheme A+G – two active sashes and one fixed panel, 3-track system
Scheme C – two center-opening sliding sashes and two fixed panels
Please press here to download our leaflets in PDF-format. The leaftlets contain all necessary information.
The Aluminium windows and doors that are provided by the ProfilNET company have a 5 year warranty. A really important factor for the windows quality is also the installation. Our professional installation team will provide a high quality standard installation.
In order to receive the warranty, you must agree to the guarantee conditions of the guarantee card. The installation needs to also match the correct mounting conditions, or match the ProfilNET Handling and maintenance conditions.
