AS 75P Unity Entrance Doors

Panel doors with flush side glazing


AS 75P Unity Entrance Doors

Characteristics

The AS 75P Unity system variant stands out with a construction that eliminates the need for duplicated profiles. The system is based on the modern P2800XX profile, allowing the door frame to integrate seamlessly with the sidelight frame, creating a consistent and elegant appearance. Both elements are connected using dedicated “T”-type connectors specifically designed for this solution.

SYSTEM ADVANTAGES

Robust construction and innovative solutions

A three-chamber system designed for the fabrication of thermally insulated doors equipped with a panel bonded across the entire door leaf surface. It fits perfectly into both modern and classic architecture. Panel doors in the AS 75P system are suitable for residential and storefront applications. Solid workmanship, the durability of aluminium, and a wide range of designs guarantee long-lasting performance, while the option of single- or double-sided flush panels ensures exceptional aesthetics.

Design

Panels available in opaque, partially glazed, fully glazed, and stainless-steel application versions. Possibility to create custom panel designs and patterns, including milled shapes and openings. Available hinge types: surface-mounted, roller, and concealed hinges. The system is also available in the GLASS LINE version with a fully glazed panel.

Functionality

Three-chamber aluminium profile construction. Multipoint locking systems as standard, with optional electromechanical locks available. Four thermal variants. Inward- and outward-opening doors. New solutions include a recessed pull handle with integrated LED lighting and decorative slats. Possibility to manufacture single- and double-leaf doors with side and/or top sidelights.

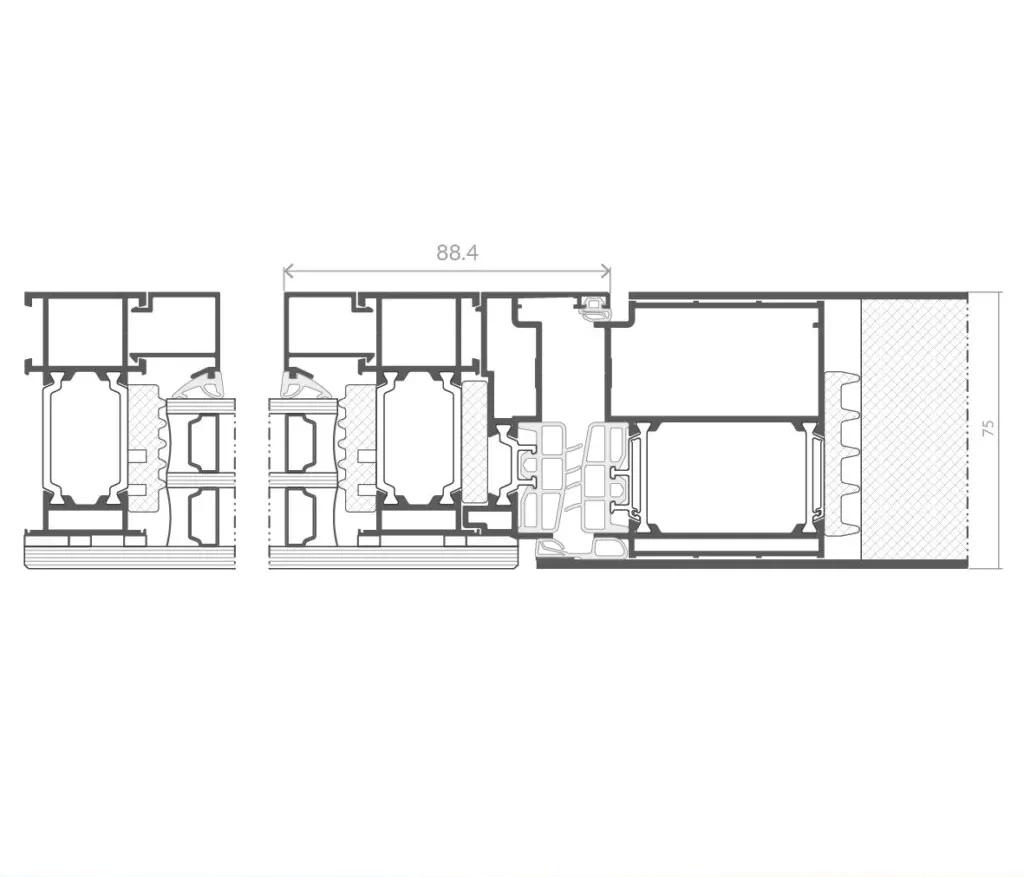

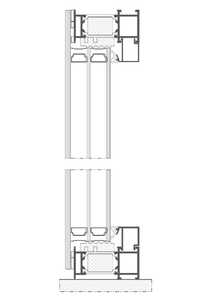

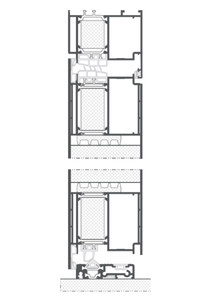

SECTIONS

Maximum sash height

3000 mm

Maximum sash width

1400 mm

Maximum sash weight

280 kg

Frame depth

75 mm

Sash depth

70 mm, 72 mm

Maximum panel thickness

75 mm

Colours

Standard colours
Non-standard colours
WOODGRAIN FINISHES
Textured coating
