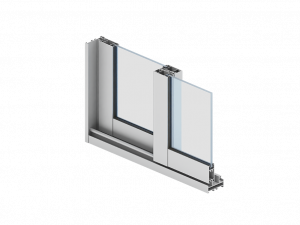

Ecoslide is a sliding system without thermal insulation designed for unheated external enclosures (balconies, terraces, loggias, winter gardens) and internal sliding enclosures. It is a two, three and four track system allowing for designing 2, 3, 4, 6 and 8 wing buildings. Constructions of this type made of aluminium are comfortable to use, light and functional, both in small and large rooms. A great advantage of the Ecoslide system is its compatibility with other Aliplast systems available in our offer.
Ecoslide is a so-called “cold system”, meaning a system without thermal insulation. Due to the lack of thermal insulation, the system is suitable for loggias and balconies, but it can also be successfully used in winter gardens and indoor structures. The Ecoslide system is ideal for areas where thermal insulation is not important (southern Europe). The light and slim construction are its advantages, and the type of carriages used has a wing load capacity of only 40 kg, which translates into durability and comfort of use.
Ecoslide is suitable both as a passage to the terrace, balcony or patio and as external building development of winter gardens and verandas. There is an option for a 4-track frame, which makes it possible to cover a wide area with up to 8 running leaves. Ecoslide is available in 6 different opening patterns. A huge range of possibilities available to you!
Ecoslide is the perfect system for ergonomic planning of interior spaces. It is ideal for areas where thermal insulation is not required. Ecoslide is ideal for use in interior spaces – it is one of the most affordable systems for this type of application.
|
PROFILE |
frame: 51 mm | sash: 26 mm |
|
GLAZING |
Standard package 4/16/4 Ug=1,0 W/m2K, warm Swisspacer frame. A frequent solution is the use of single safety or toughened glass | possibility of glazing up to 24 mm. |
|
FITTING |
Aliplast fittings, 1-point locking system. |
|
HANDLES |
Handle recessed in the profile in white, black or silver. |
Scheme F - two active sashes
System of three active sashes
Scheme F and C - four active sashes or two active sashes and two fixes
Scheme C+G+G - six active sashes or four active sashes and two fixings - 3-track system
System of 4 active sashes - 4 track system
System of 8 active sashes- 4 track system
