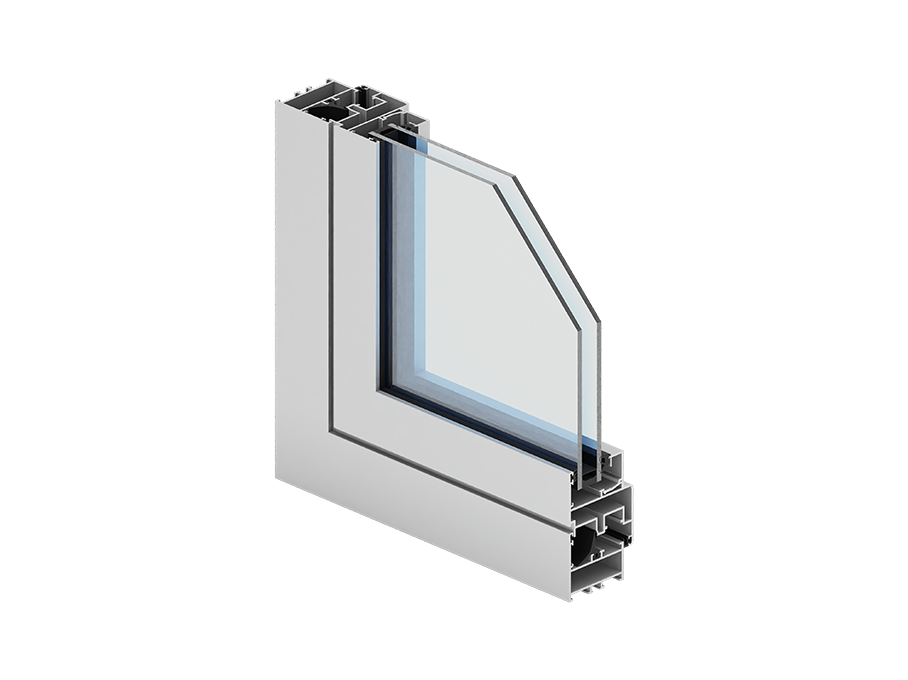

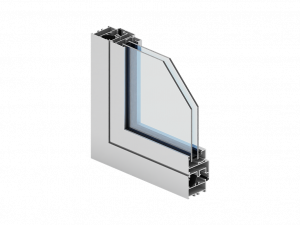

Econoline 51 is a system without thermal insulation, designed for constructing internal partitions – both fixed and those with windows and doors. It is used to make partition walls for general use in public and industrial buildings, as well as offices. A big advantage of Econoline 51 system is its compatibility with other Aliplast systems. In Econoline 51 construction it is possible to use rebate hinges, which not only look much better, but are also more stable than the standard ones. Panel doors can also be built based on this system (Econoline 51 panel). The depth of the frame in the Econoline 51 system is 51 mm, while the sash is 60 mm.
Econoline 51 panel system is an aluminium system without thermal insulation. The supporting structure of the door system is the above-described Econoline 51. It is used for the design of doors in residential and public buildings, and the characteristic feature of the system is a large choice from a variety of infill panels. Thanks to its elegant appearance and many design possibilities, Econoline 51 panel system has become one of the favourite systems used by architects.
Econoline 51 is a highly flexible system for designing windows, doors and partition wall segments without thermal insulation (the so-called cold system), used mainly in public and industrial buildings. It provides a range of possibilities, such as a smoke-proof function, which is particularly applicable in this type of construction. These walls can be joined at any angle, integrated with swinging or sliding doors. A great advantage of the system is the possibility to make panel doors with a wing panelled on both sides (it harmonises aesthetically with similar entrance doors).
Econoline 51 system is compatible with other Aliplast systems thanks to the use of common glazing strips, seals or hardware.Therefore, it allows constructing partition walls, sliding and swinging doors, and joining walls at any angle and with any design. Additionally, based on the Econoline 51 system, it is possible to design panel doors, the supporting structure of which is the system described above. A wide range of infill panels, available in different colours and designs, as well as a door frame panel that is flush with the panel, ensure an elegant appearance and allow great freedom of space arrangement inside and outside residential and public buildings.
Econoline 51 system means a multitude of colours perfectly matching the style of your interior! Windows and doors in Econoline 51 system are available in all RAL colours. In addition, they can be made in Aliplast Wood Colour Effect palette, which perfectly reflects the beauty of wood-like colours.
|
PROFILE |
frame: 51 mm | sash: 60 mm |
|
GLAZING |
Standard single glass pane 33.1 | Possibility of glazing with glass packet to a depth of 37 mm | Choice of panes: safety, toughened, anti-burglary, solar control, acoustic, ornamental and internal glazing bars |
|
WINDOW hardware |
Winkhaus Activ Pilot: fitted as standard with anti-theft mushroom cams on the entire round surface, which can be adjusted by decreasing or increasing the sash pressure on the frame depending on the season | Additionally the window is equipped with anti-theft strikers, sash lift, microventilation and blockade wrong placement of the handle. A 1-point lock, GU Secury or KV fitting with 3-point locking can be used in the door. It is possible to purchase windows and doors in safety class RC 1 and RC 2. |
|
HANDLES |
Windows - as standard: aluminium Hoppe Secustic handles: in silver, white 9016, brown 8019, anthracite 7016, matt black 9005, gold, inox. | Entrance doors - stainless steel handles and catches as standard. |
Please press here to download our leaflets in PDF-format. The leaftlets contain all necessary information.
The windows that are provided by the ProfilNET company have a 5 year warranty. A really important factor for the windows quality is also the installation. Our professional installation team will provide a high quality standard installation.
In order to receive the warranty, you must agree to the guarantee conditions of the guarantee card. The installation needs to also match the correct mounting conditions, or match the ProfilNET Handling and maintenance conditions.
