Structure système conçue pour les fenêtres monobloc

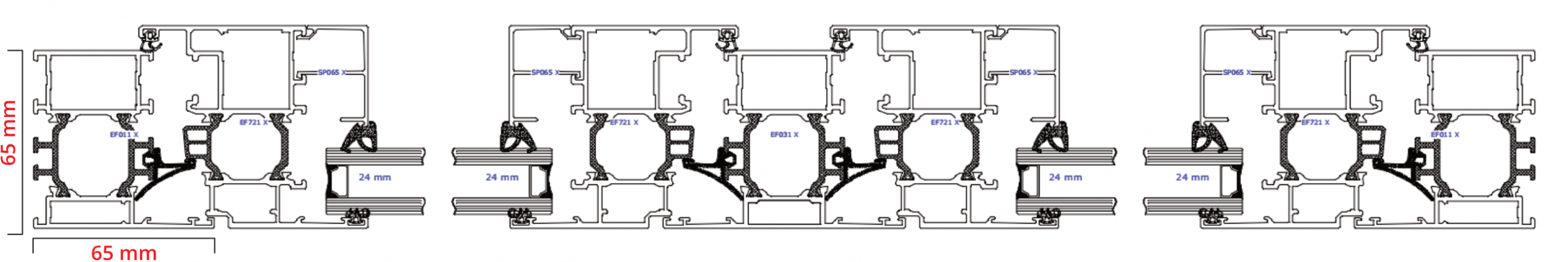

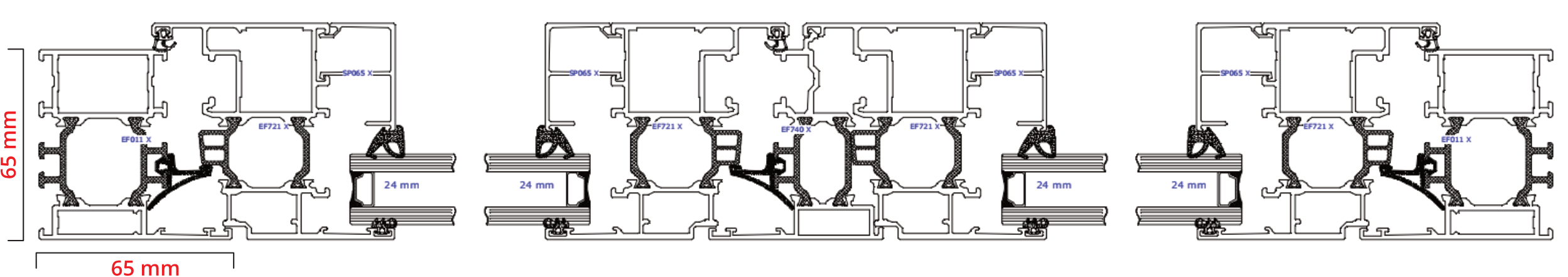

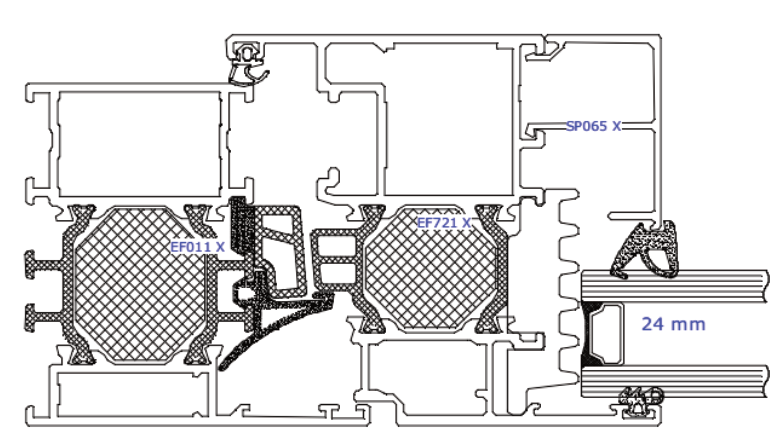

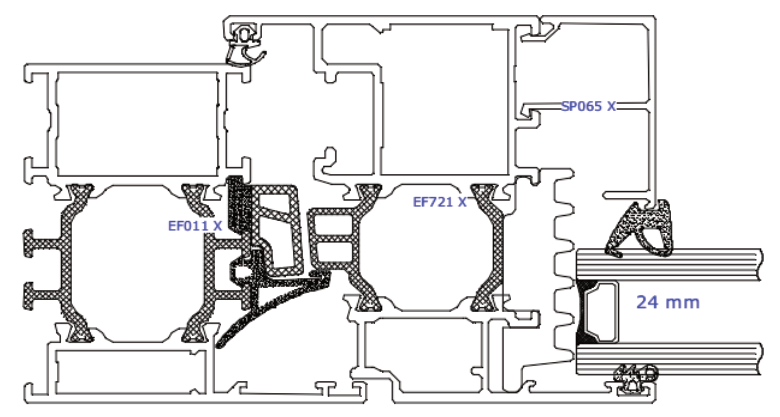

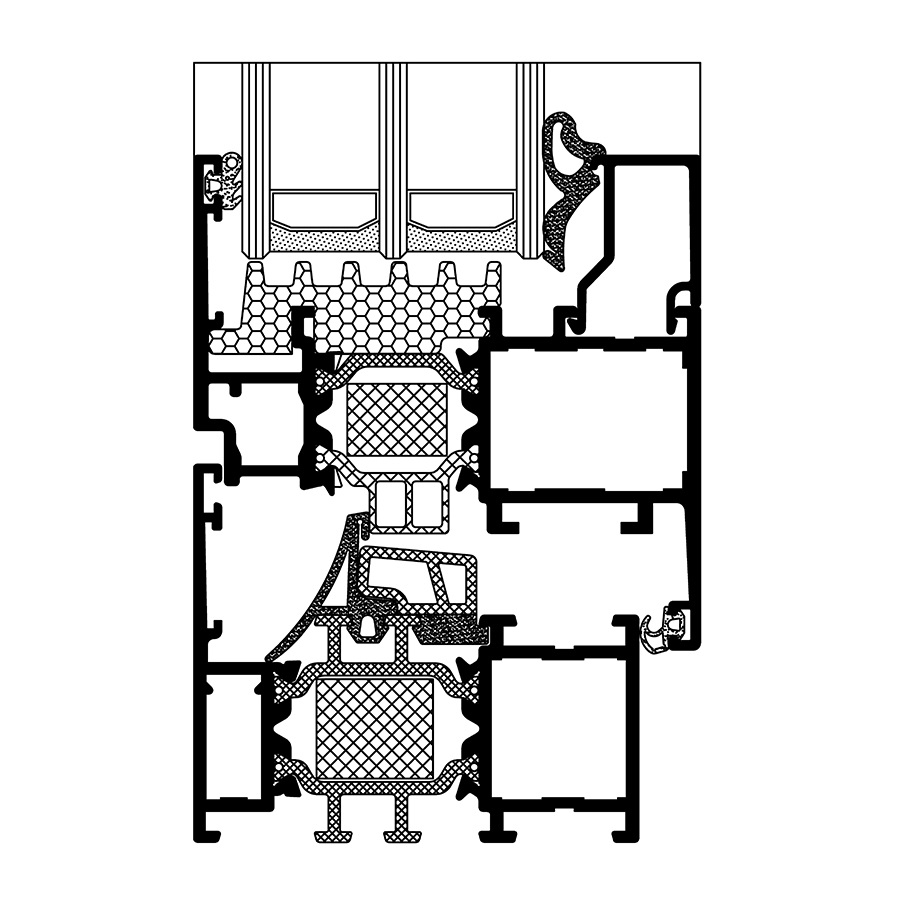

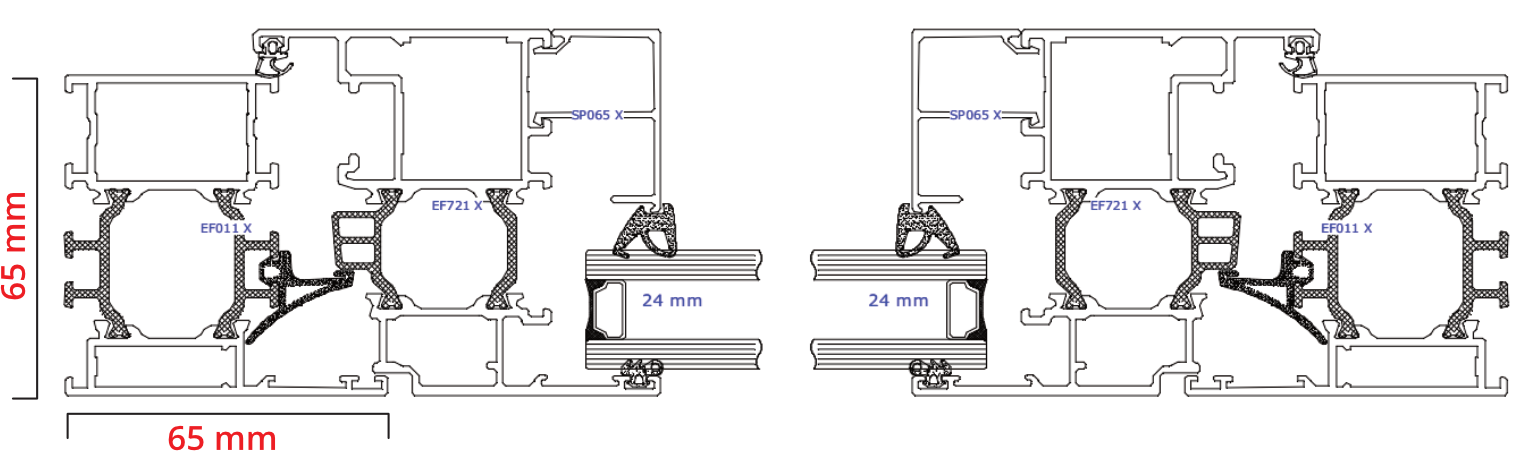

Aliplast Ecofutural 65 is a window and door system with enhanced thermal performance. With a frame depth ranging from 65 to 153 mm and a sash depth of 74 mm, it is characterized by the use of thermal spacers in areas requiring improved insulation. It is available in two versions: ECOFUTURAL i, featuring additional thermal insulation at the glass-to-profile junction; ECOFUTURAL i+, which additionally includes insulation between thermal spacers. These features allow the system to achieve a thermal transmittance coefficient Uf starting from 1.5 W/m²K.

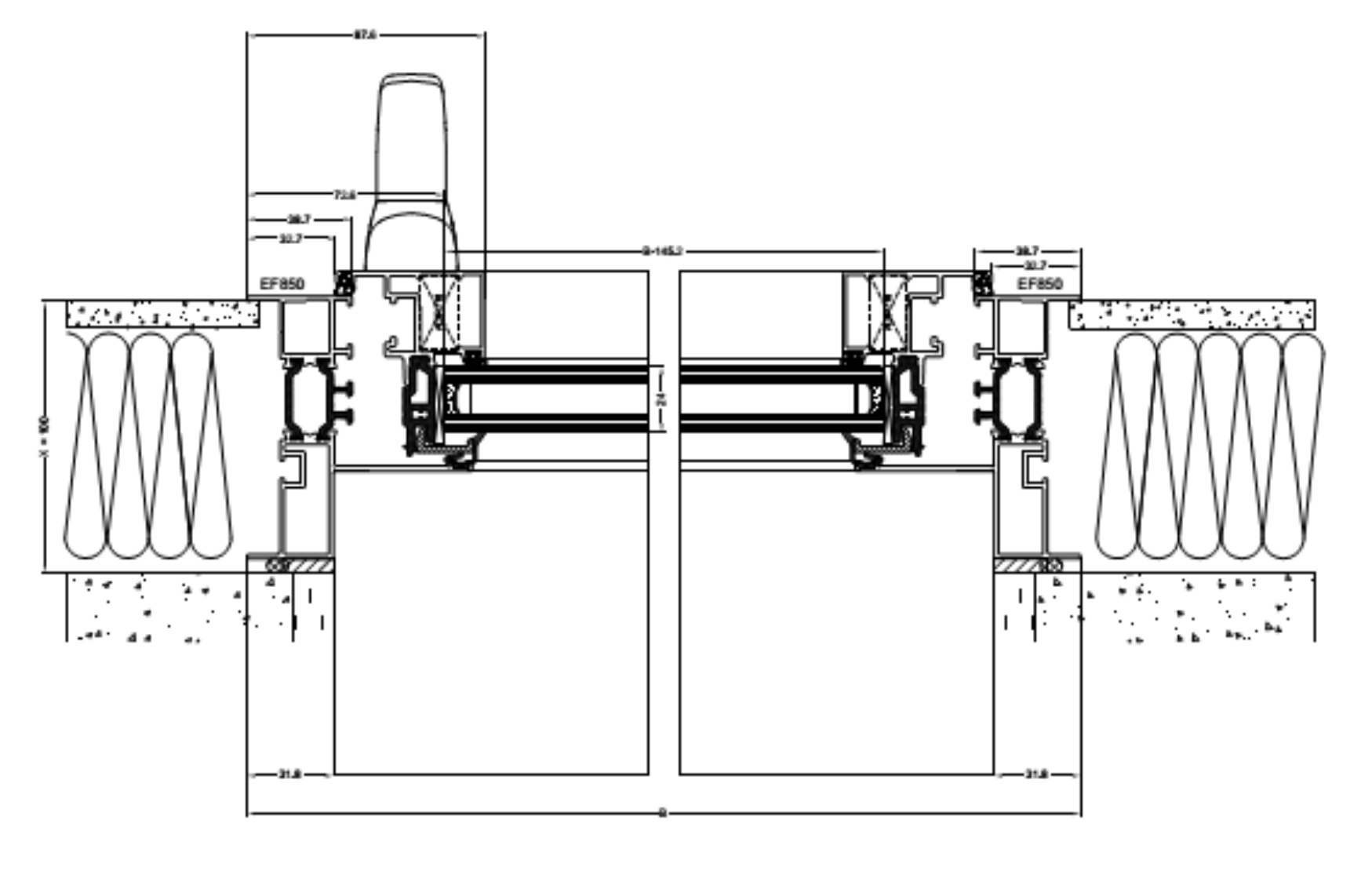

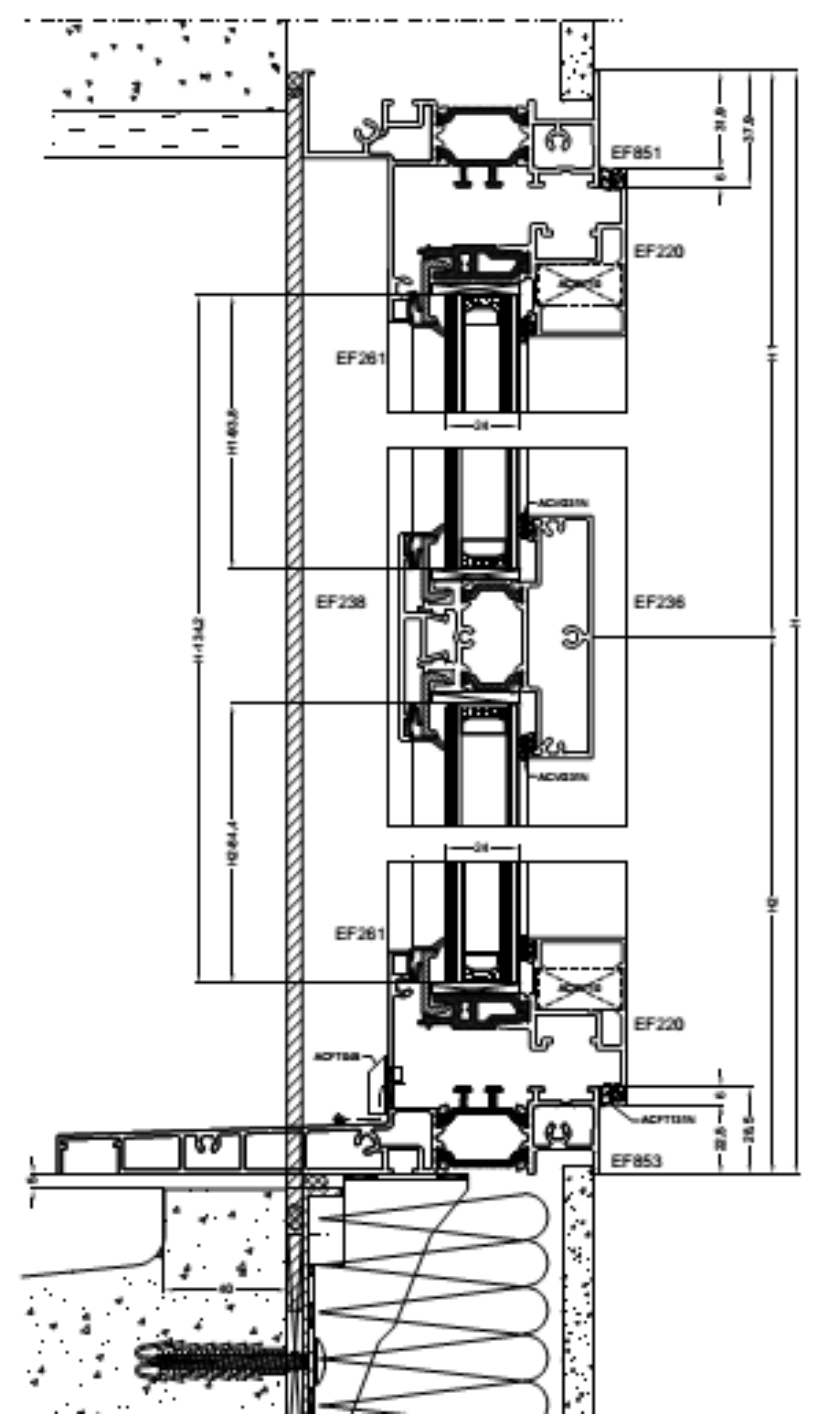

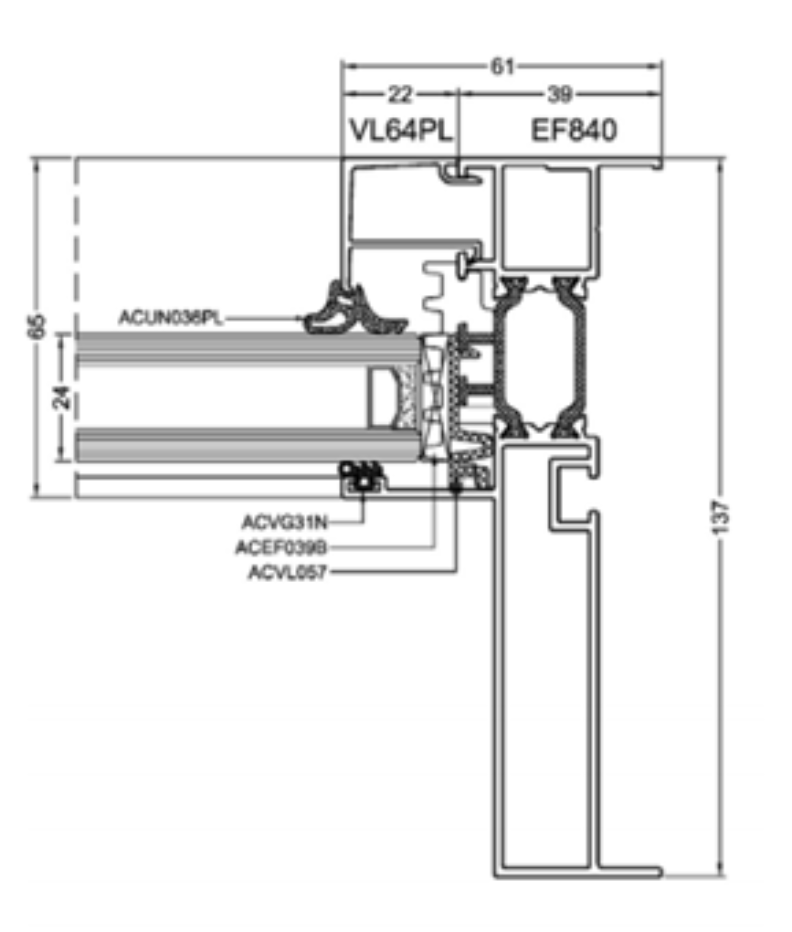

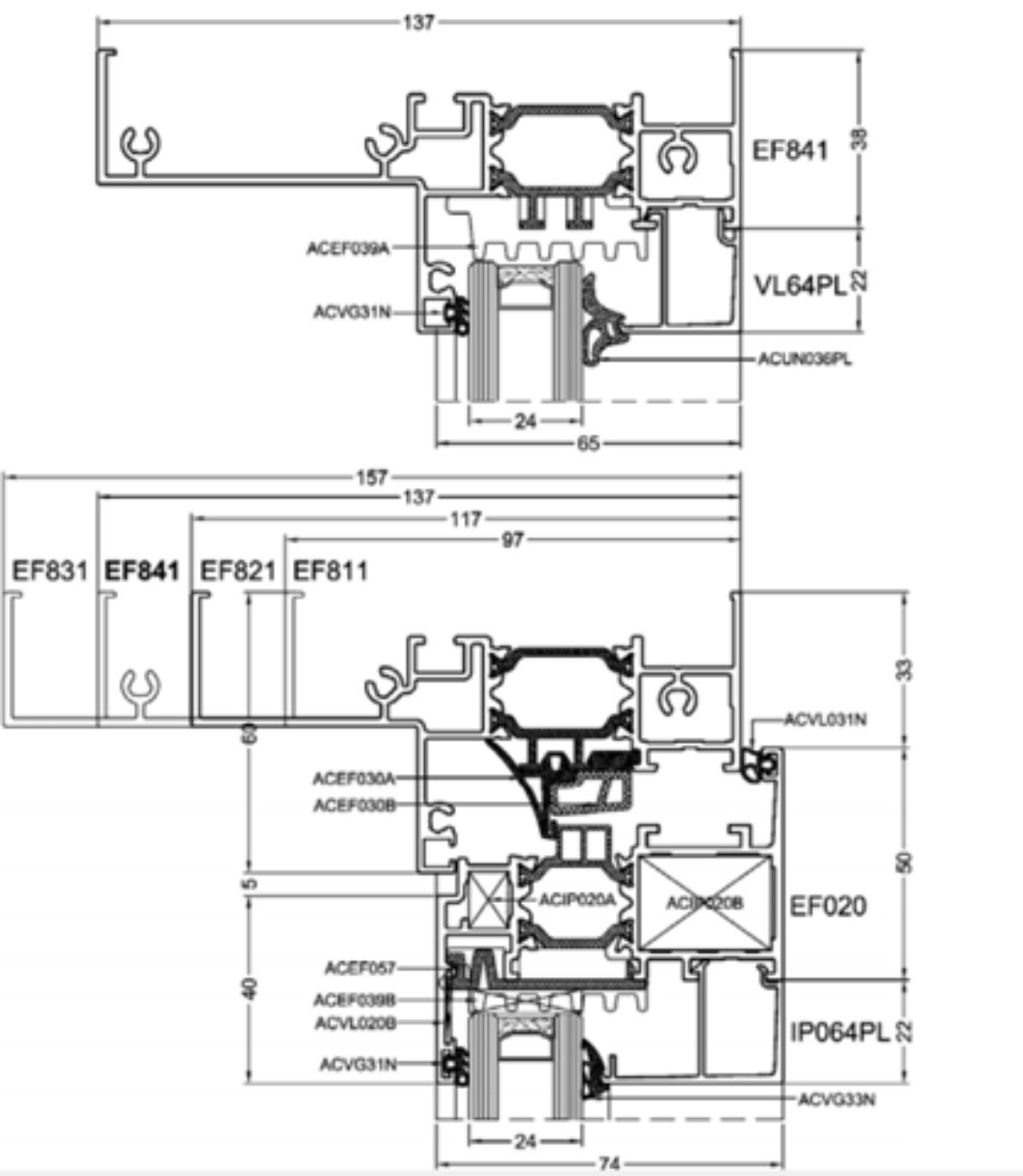

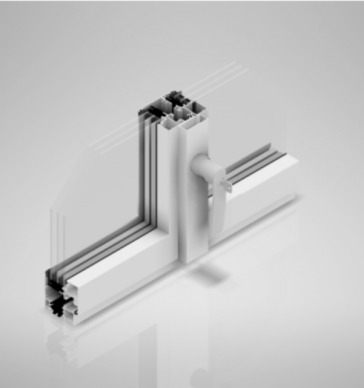

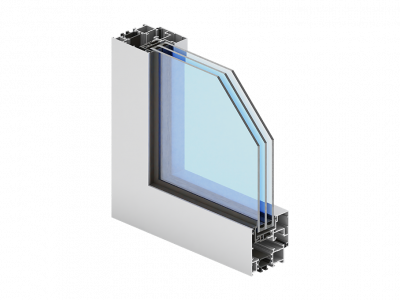

Aliplast Ecofutural OC is an extension of the above system, distinguished by an innovative frame design that fully conceals the sash height. Additionally, it features an internally invisible glazing bead. The system structure enables the design of monoblock windows, while a very narrow movable mullion of just 77 mm width gives the entire construction a light and slim appearance.

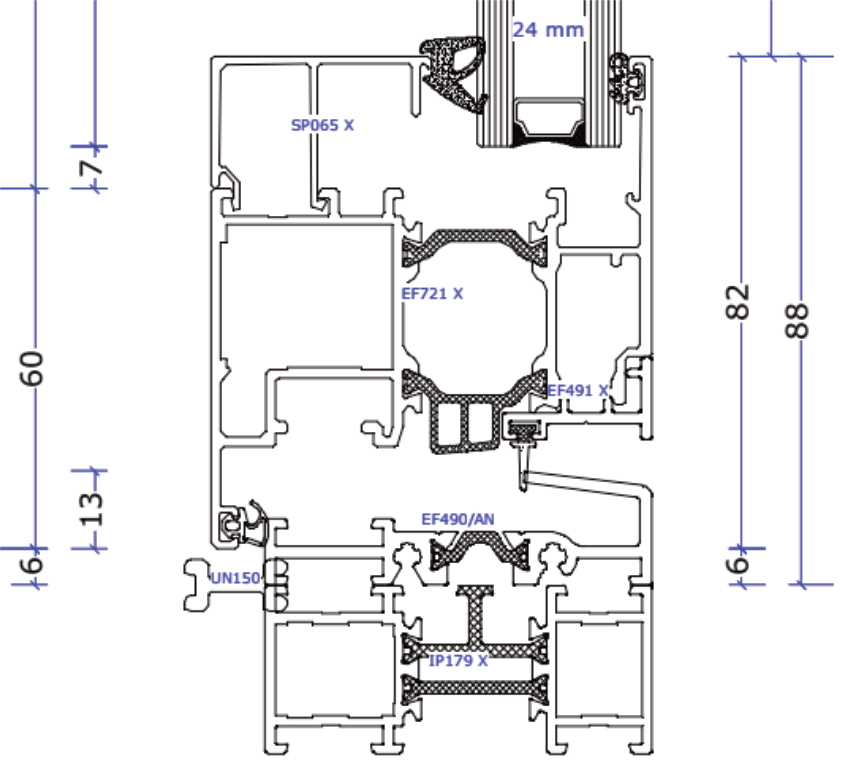

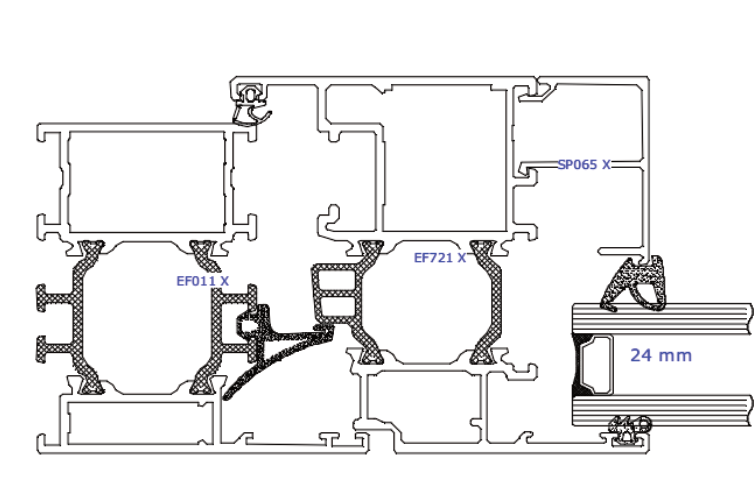

Excellent thermal properties – Uf from 1.27 W/m²K. Such performance is achieved by additional insulation at the glass-to-profile connection and insulation between thermal spacers.

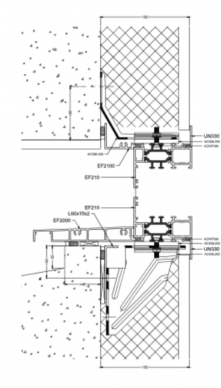

The innovative system design allows for: Pivot doors with an offset rotation axis (up to 300 mm), Monoblock windows, Renovation frames.Additionally, profiles can be bent to create custom, non-standard window shapes.

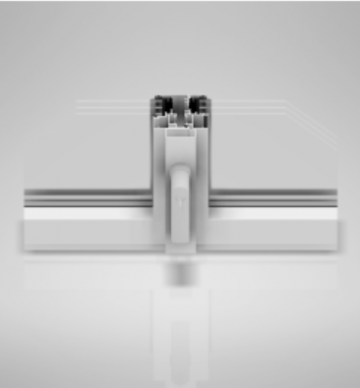

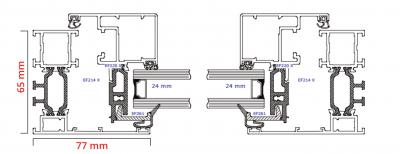

In the Ecofutural OC version: the frame fully conceals the sash (so-called “hidden sash”), the glazing bead is invisible from the inside, a very narrow 77 mm movable mullion enhances the slim and modern look of the structure.
Les fenêtres et les portes du système Ecofutural sont disponibles dans toutes les couleurs RAL. En outre, elles sont également fabriquées dans la palette Aliplast Wood Color Effect, qui reflète parfaitement la beauté des couleurs de bois, ainsi que dans le système Decoral, qui comprend aussi des couleurs de bois, des imitations de marbre, de granit et autres motifs. Une solution intéressante est la possibilité de créer une structure bicolore, où les profils à l’extérieur et à l’intérieur ont une couleur différente.
|
Frame depth |
65-153 mm |
|
Sash depth |
74 mm |
|
Glazing thickness |
Fixe : 4–50 mm / Window: 13–59 mm |
|
Window types |
Fixed, side-hung (casement), tilt-and-turn |
|
Door types |
Single-leaf or double-leaf |
|
Thermal insulation (Uf*) |
EF: from 1.50 W/m²K EF | i: from 1.44 W/m²K EF | i+: from 1.27 W/m²K |
|
Air permeability |
Class 4; PN-EN 12207 |
|
Wind resistance |
Class C4 (1600 Pa); PN-EN 12210 |
|
Water tightness |
Class 9A (600 Pa); PN-EN 12208 |

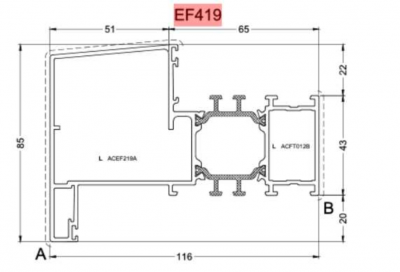

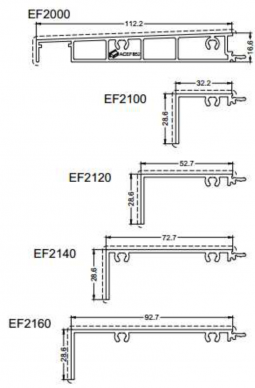

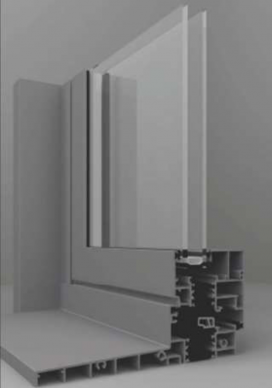

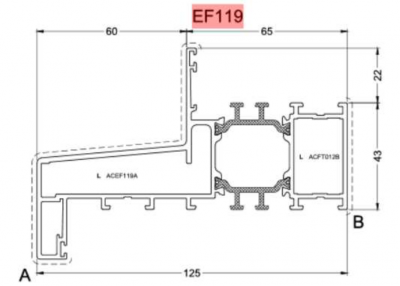

Renovation frames: it is possible to use external finishing profiles that clip on from the outside.
Please press here to download our leaflets in PDF-format. The leaftlets contain all necessary information.
The windows that are provided by the ProfilNET company have a 5 year warranty. A really important factor for the windows quality is also the installation. Our professional installation team will provide a high quality standard installation.
In order to receive the warranty, you must agree to the guarantee conditions of the guarantee card. The installation needs to also match the correct mounting conditions, or match the ProfilNET Handling and maintenance conditions.
