Ecoslide
System for unheated external buildings

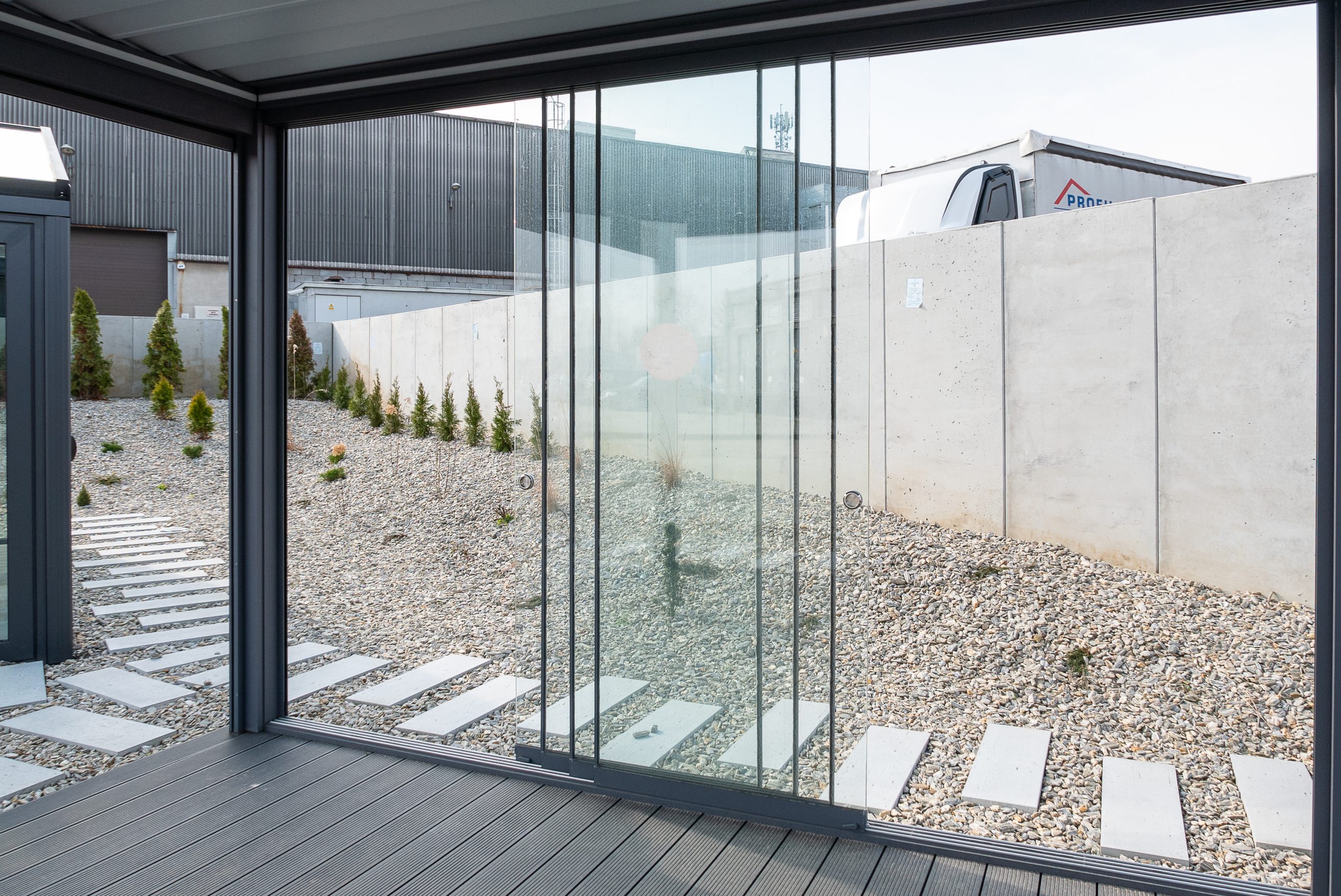

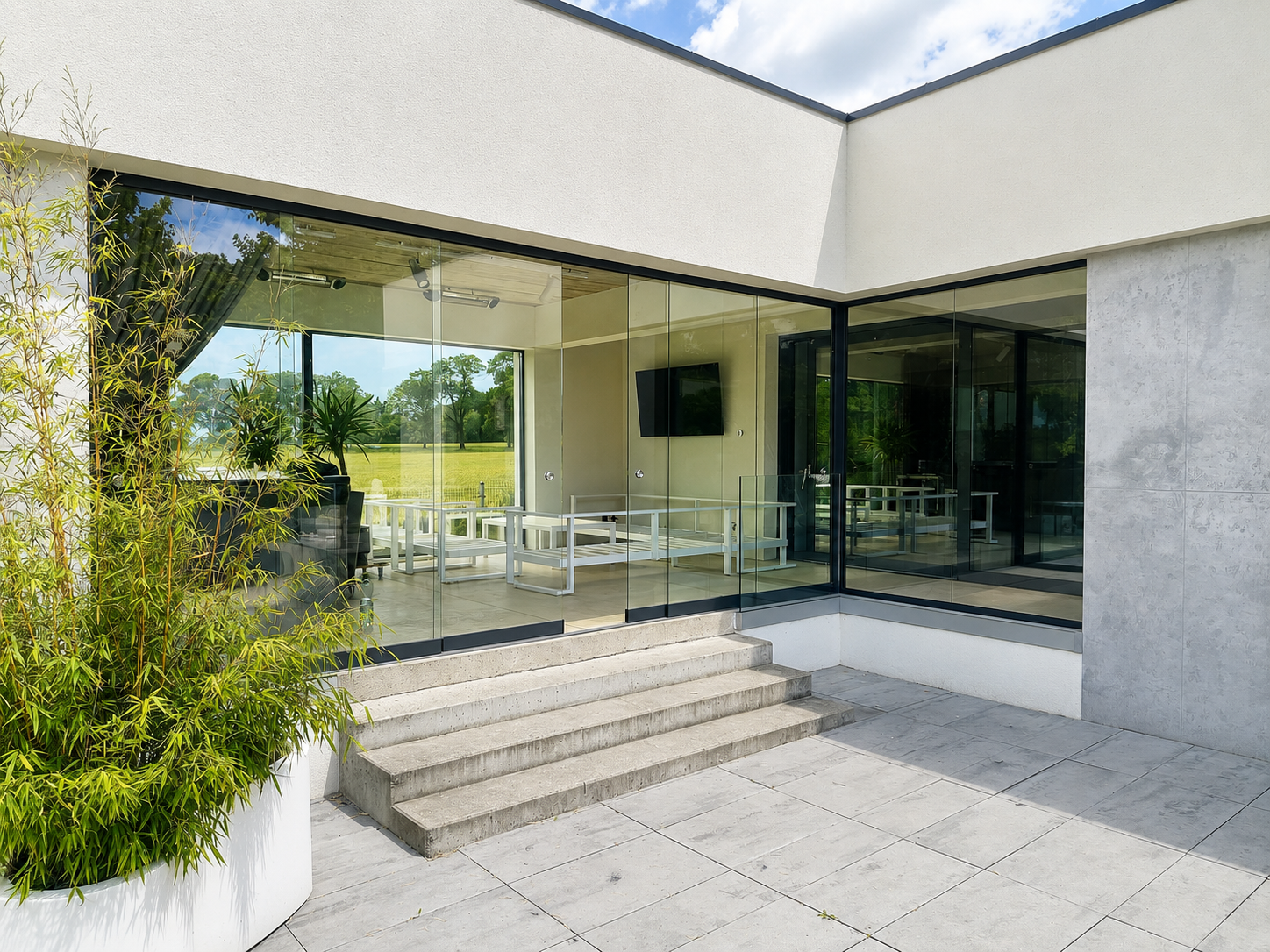

Easy Slide is a non-insulated aluminium sliding door system that allows for comfortable use of covered outdoor spaces regardless of weather and wind conditions. The Easy Slide system offers a wide range of opening options, while the frameless sashes ensure an elegant appearance and maximum transparency. Its main advantages include an aesthetic, fully glazed sash without the need for surrounding profiles, as well as the option of a bottom frame or a low-threshold solution.

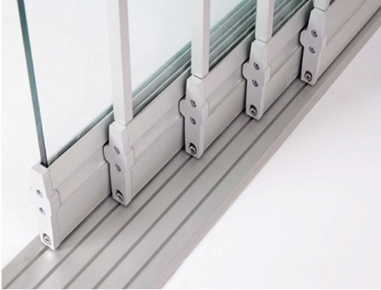

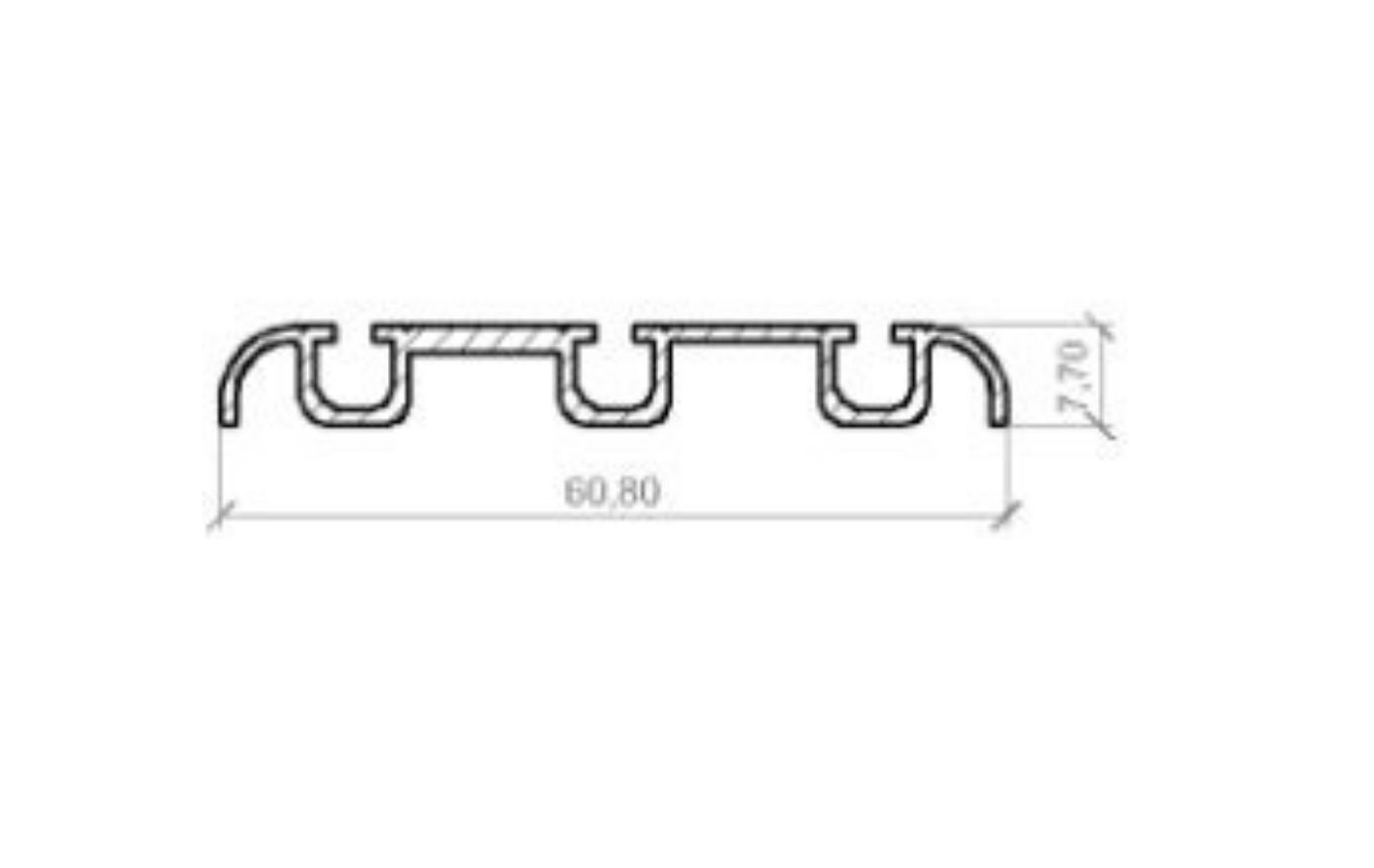

The Easy Slide system can be equipped with either a standard threshold or a low threshold. Aluminium profiles with brush seals (sealing the space between the glass panels) can be installed between the panes. For those who prioritize aesthetics, a version without these profiles is also available.

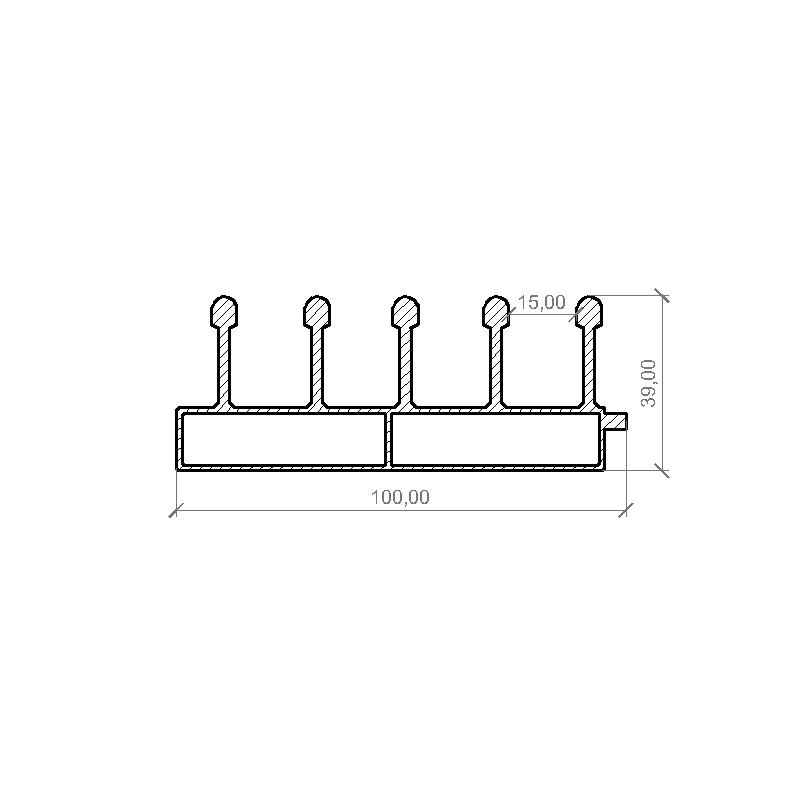

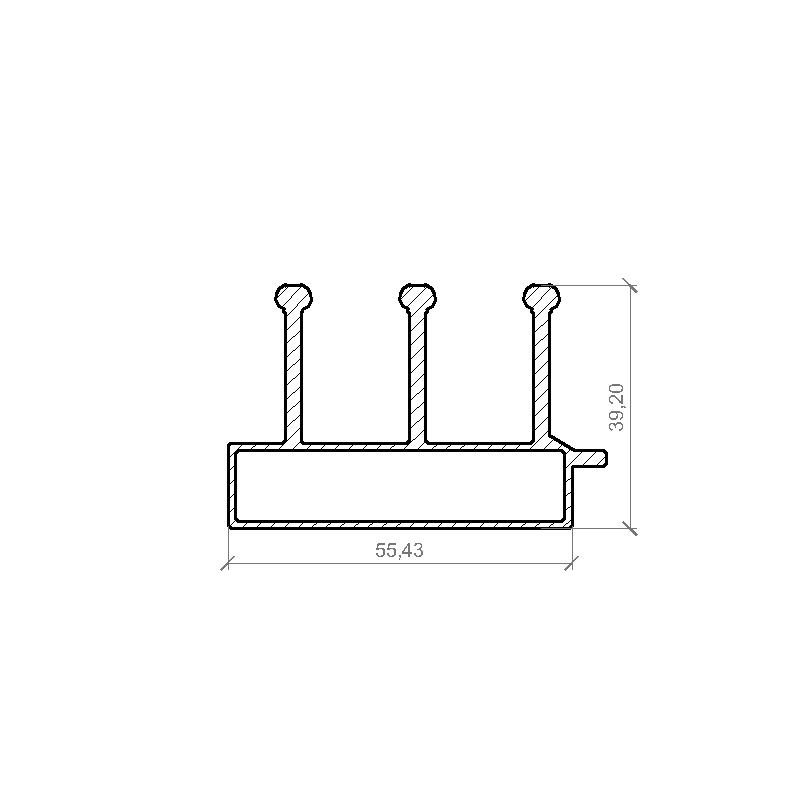

The system can be manufactured up to a maximum width of 5 m and a height of 3 m. The sashes can slide to the sides or open centrally. The structure can be secured using bottom bolts or a key lock. Openings are made in the outer sashes to allow for handle installation. The Easy Slide system enables 3- and 5-track configurations and can reach widths of up to 6 meters (in which case the sashes slide to the sides). It is equipped with 8 or 10 mm ESG glass and is available in standard structural colours. Locking is achieved a latch mounted on the lower sash profile or a lock installed on the glass.

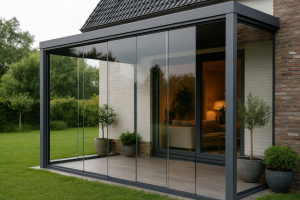

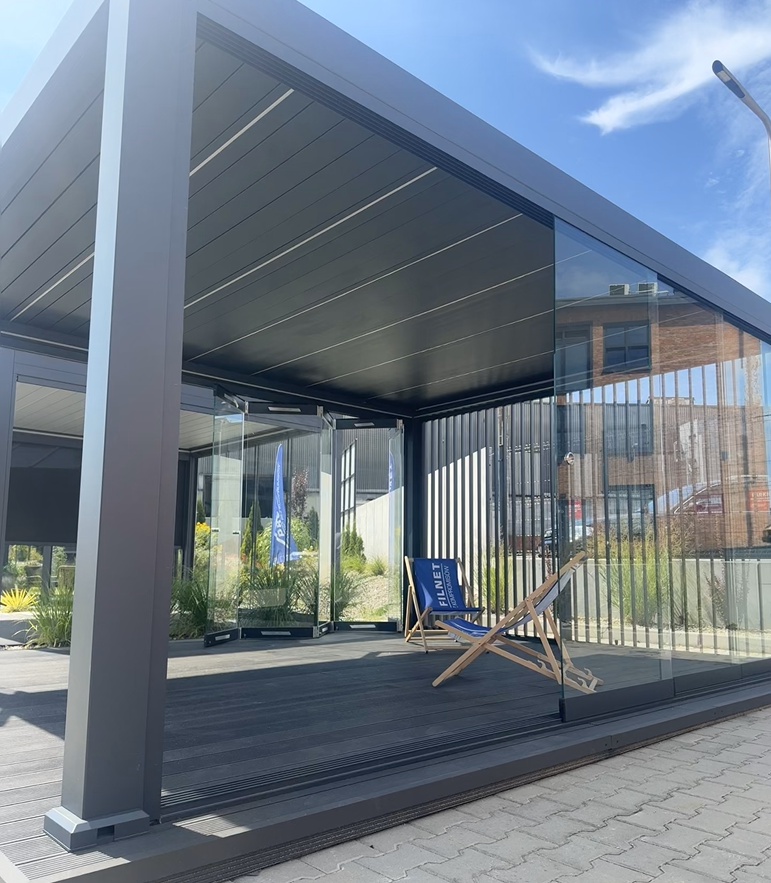

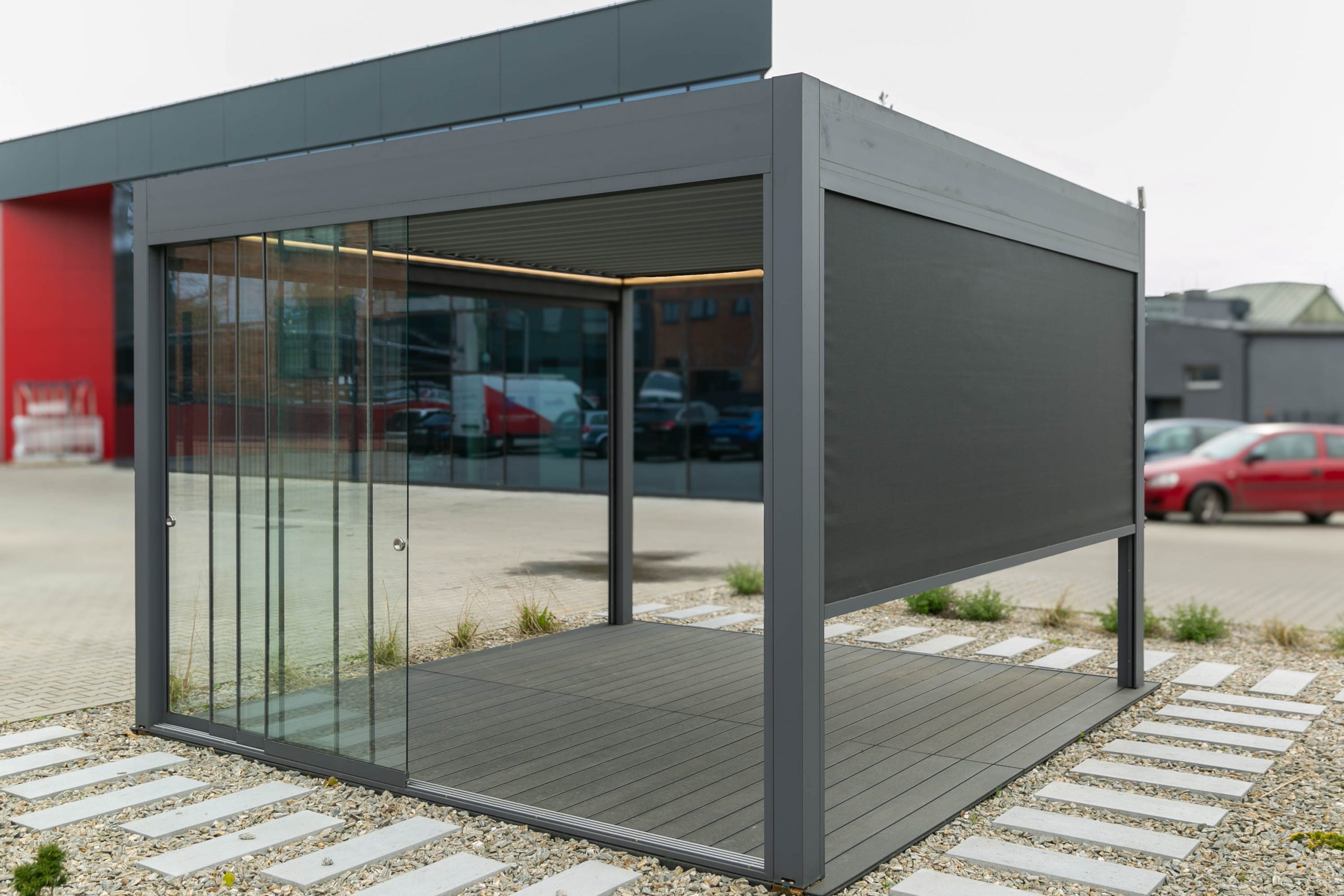

The system is mainly used for enclosing aluminium cold roof structures and pergolas. Its primary function is to protect against rain and wind. A major advantage is its highly competitive price. The load capacity of the rollers is up to 80 kg. Easy Slide is an ideal complement to cold roof systems as well as Pergola Light.
|
GLASS |
Tempered glass (ESG) 8 mm (up to 2800 mm height) or 10 mm |
|
HARDWARE |
Door locking with a side bolt and a key lock. |
Inside: ABC
Outside
Inside: ABCD
Outside
Inside: ABCDE
Outside
The windows that are provided by the ProfilNET company have a 5 year warranty. A really important factor for the windows quality is also the installation. Our professional installation team will provide a high quality standard installation.
In order to receive the warranty, you must agree to the guarantee conditions of the guarantee card. The installation needs to also match the correct mounting conditions, or match the ProfilNET Handling and maintenance conditions.
