Stone doors Stone line
A line of doors inspired by nature made of natural stone

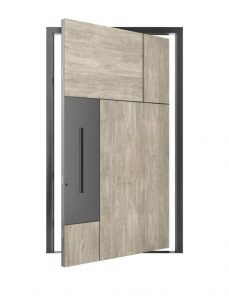

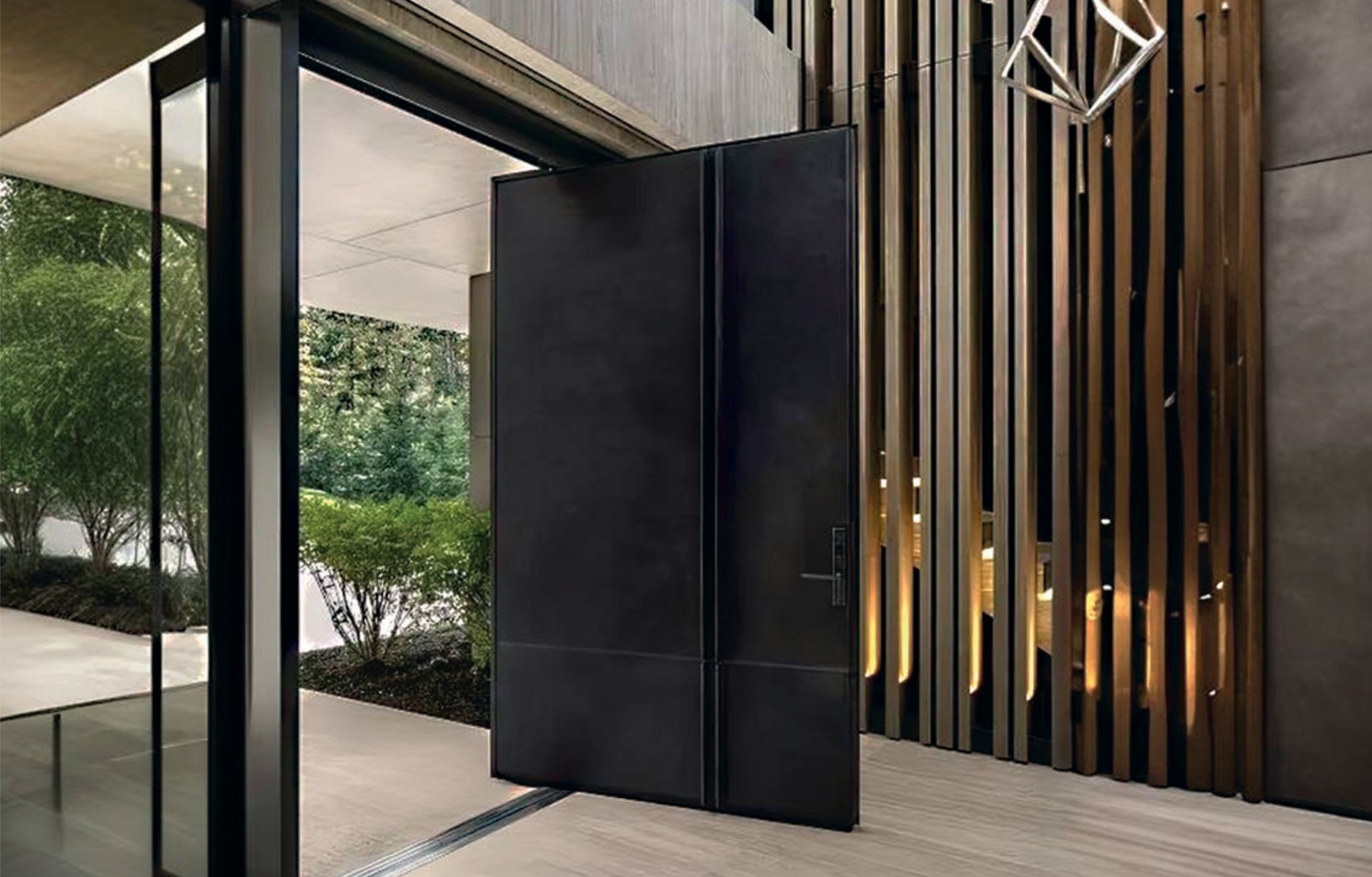

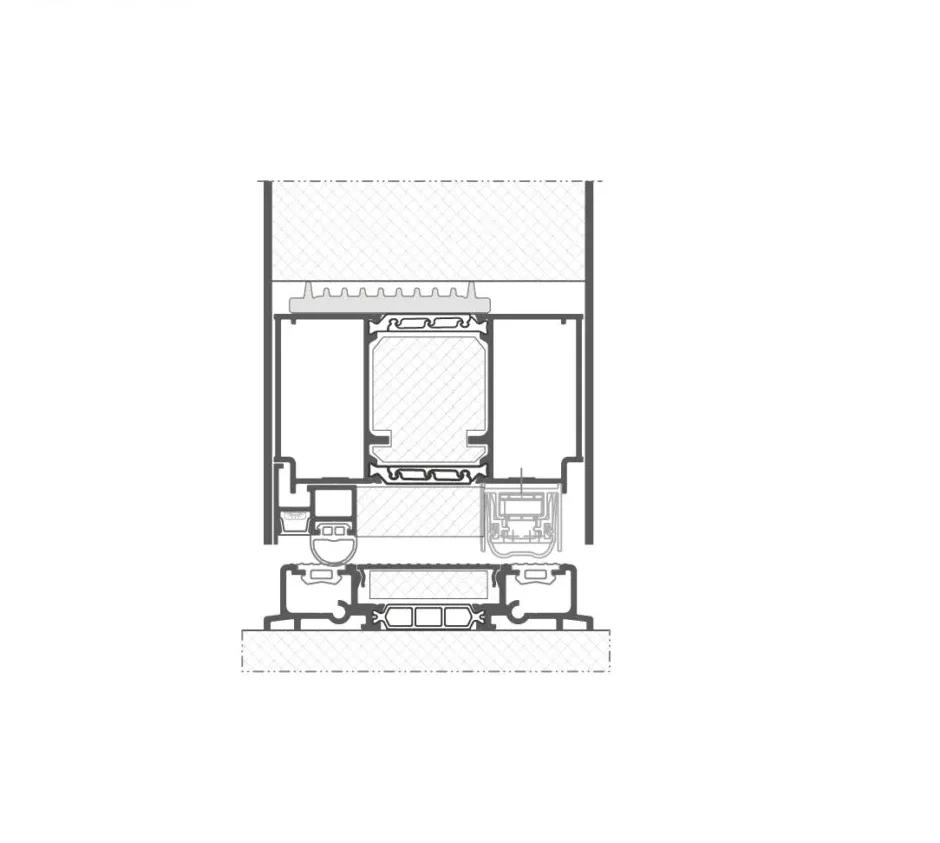

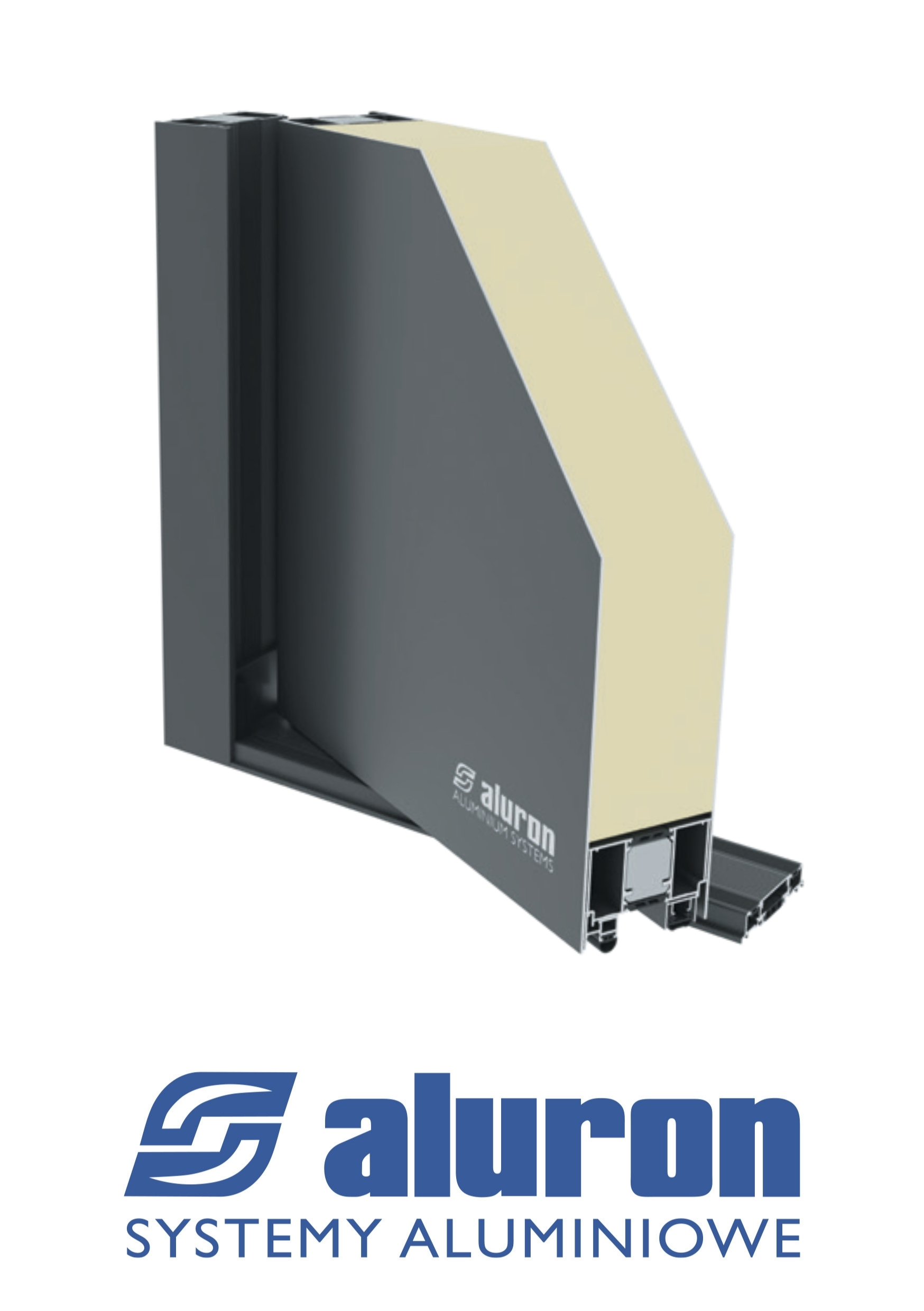

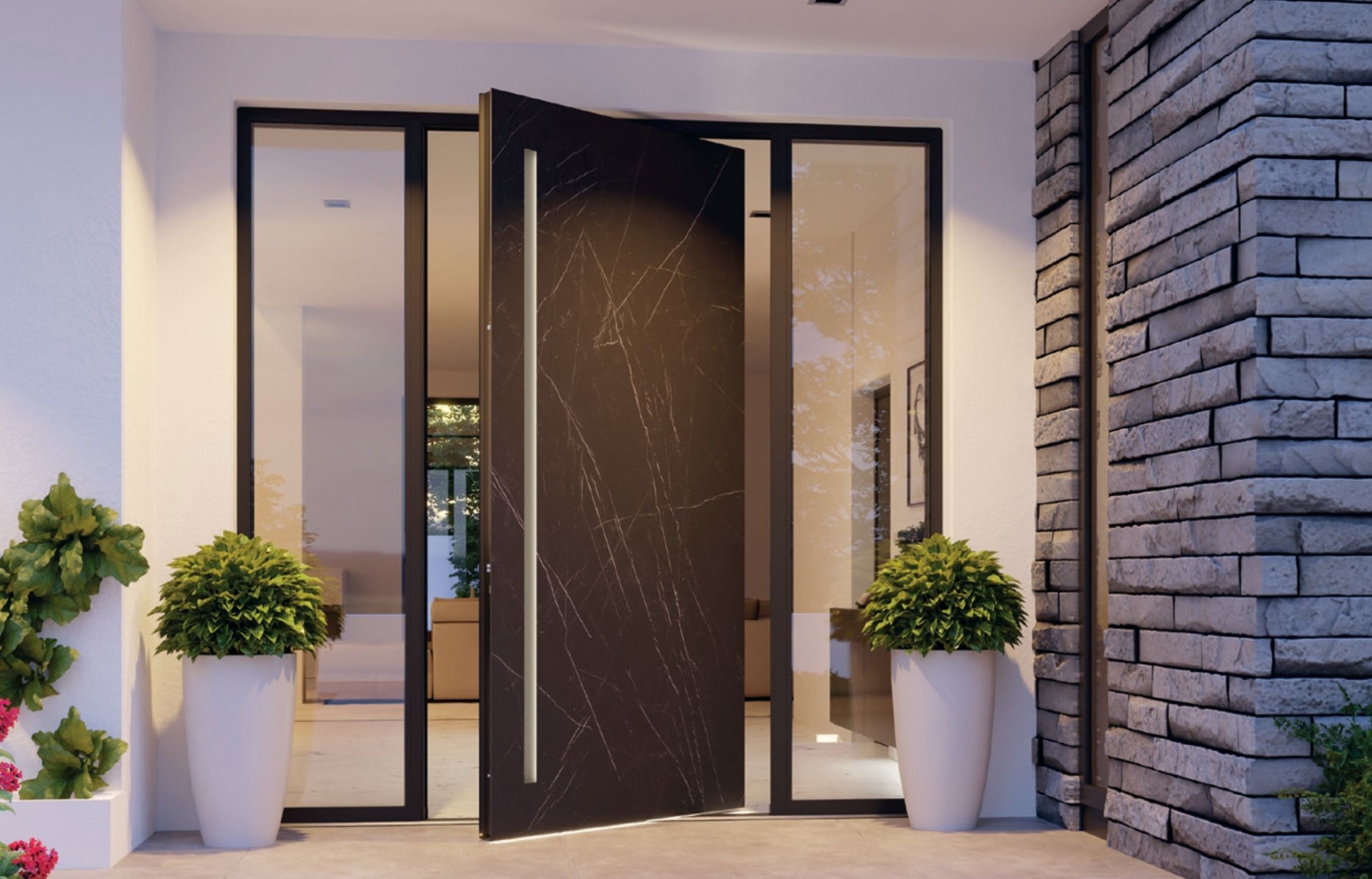

The AS 100 PIVOT door system with an offset pivot axis is designed for constructing single- or double-leaf external doors. Its distinctive feature is the offset pivot axis, giving the doors a striking and unique appearance. The system uses eco-friendly TPE gaskets and split anti-bimetal thermal separators, which protect the doors from deformation caused by temperature differences. Door tightness is further improved by an automatic drop-down seal that lowers when the door leaf is closed. The so-called drop-down threshold protects against the penetration of cold air, dust, water and noise. The exceptional design has been achieved by concealing all fastening elements within the system (such as screws and fixings).
The AS 100 Pivot door leaves are available in three infill variants:
with insulated glazing,
with a door panel, also available in the Glass Line version,
with elegant enamelled glass bonded to both sides of the door leaf.

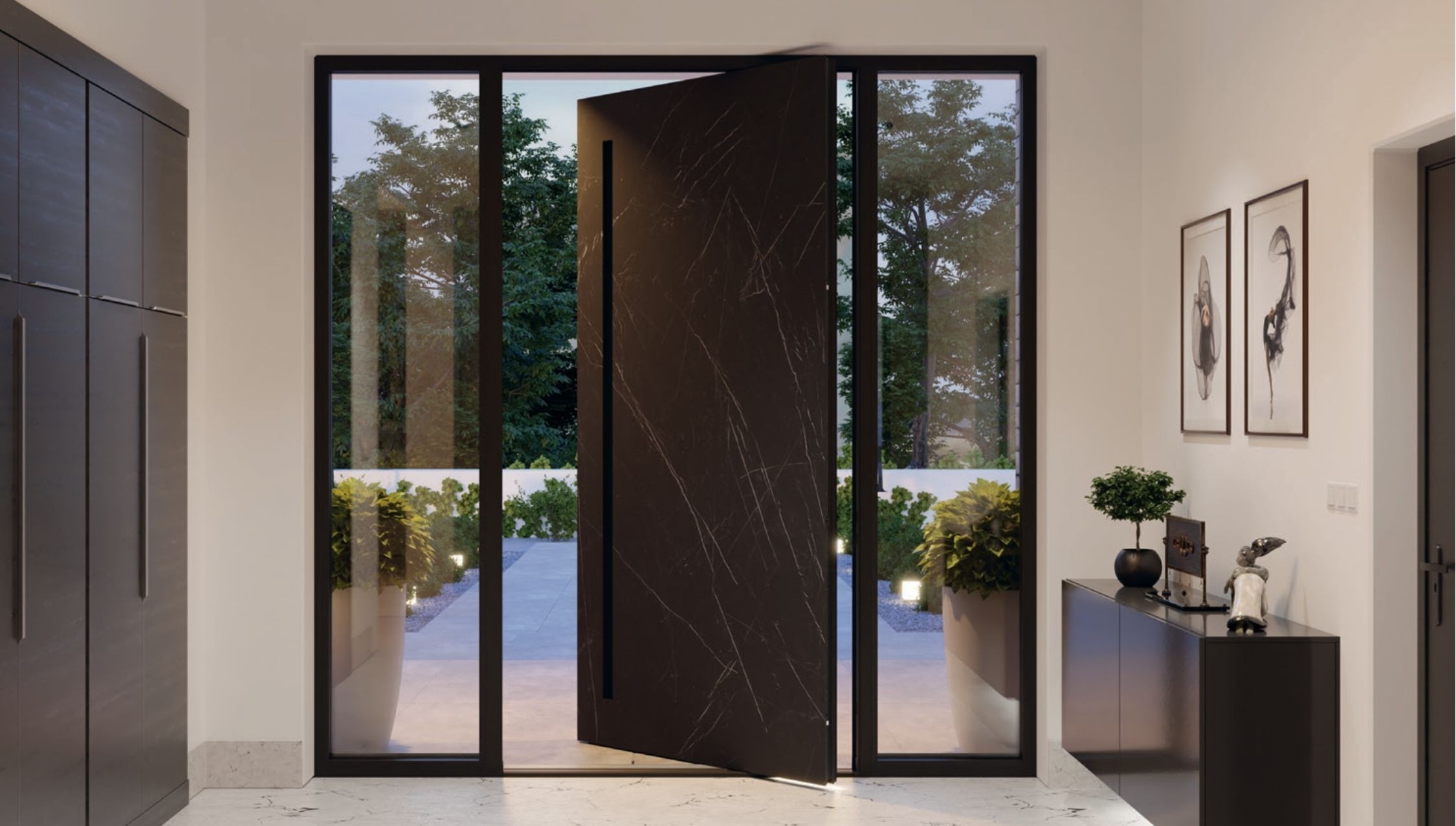

Possibility of combining with side glazing and top lights without the need to duplicate profiles
System compatible with linear drainage solutions
Option to use concealed hinges, an electromotor lock, and Instinct electronic strikes
Doors can be equipped with an elegant LED strip illuminating the door threshold
Access control via fingerprint reader, keypad, remote control or smartphone
Doors can open inwards or outwards
Possibility of equipping the door with a custom recessed Aluron handle

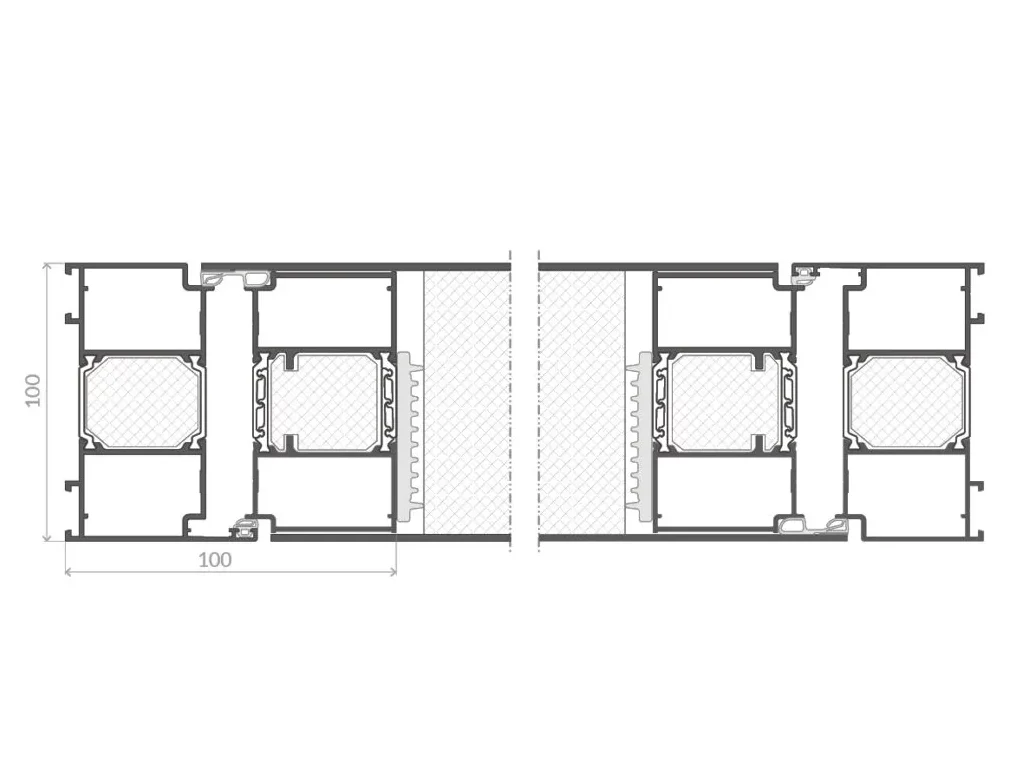

Flush, rebated-free solution.
The construction incorporates eco-friendly TPE gaskets and split anti-bimetal thermal separators, protecting the doors from deformation caused by temperature differences. Excellent door tightness is ensured by an automatic drop-down seal that lowers when the door leaf closes. The drop-down threshold protects against the penetration of cold air, dust, water and noise.
|
Thermal insulation Ud |
from 0,6 W/m2K |
|
Water tightness |
class 3 |
|
Wind load resistance |
class 6A |
|
Wind load resistance |
class C3/B3 |
|
Max. leaf height |
3500 mm |
|
Max. leaf width |
2000 mm |
|
Max. leaf weight |
500 kg |
|

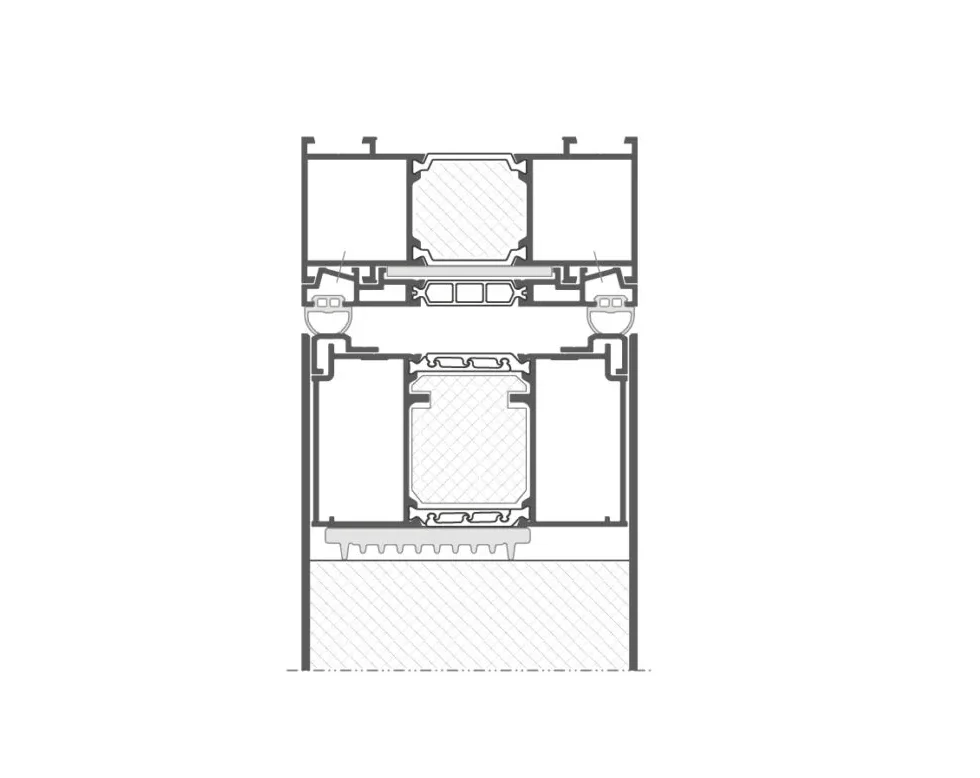

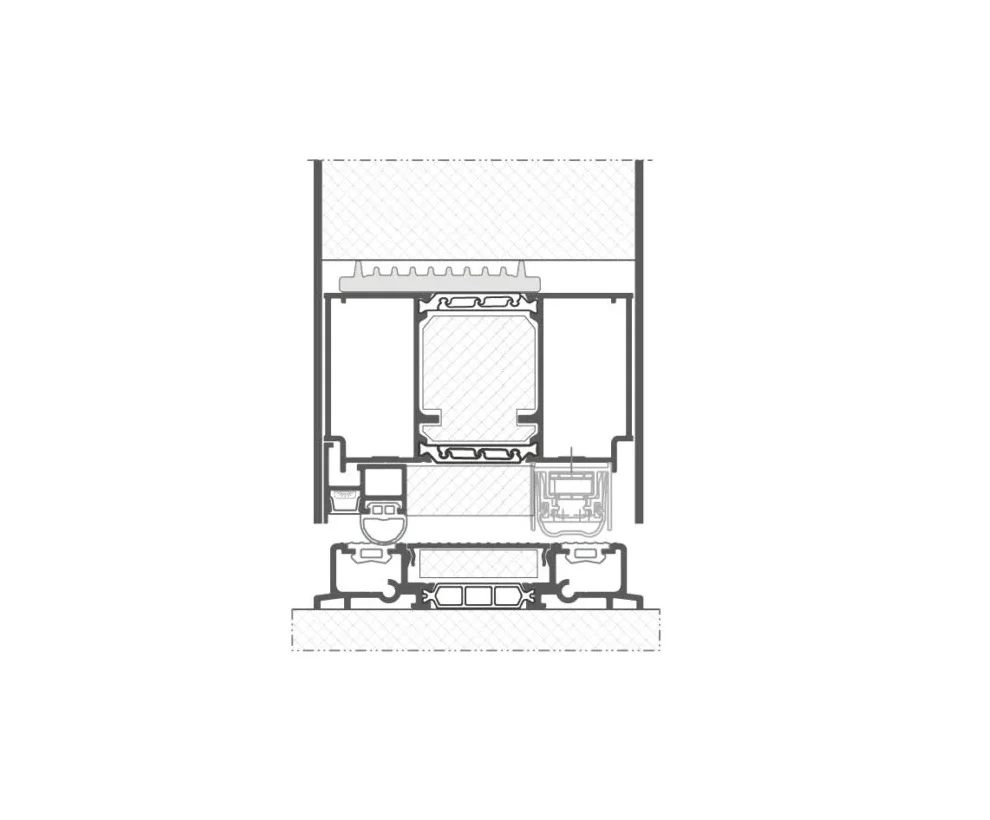

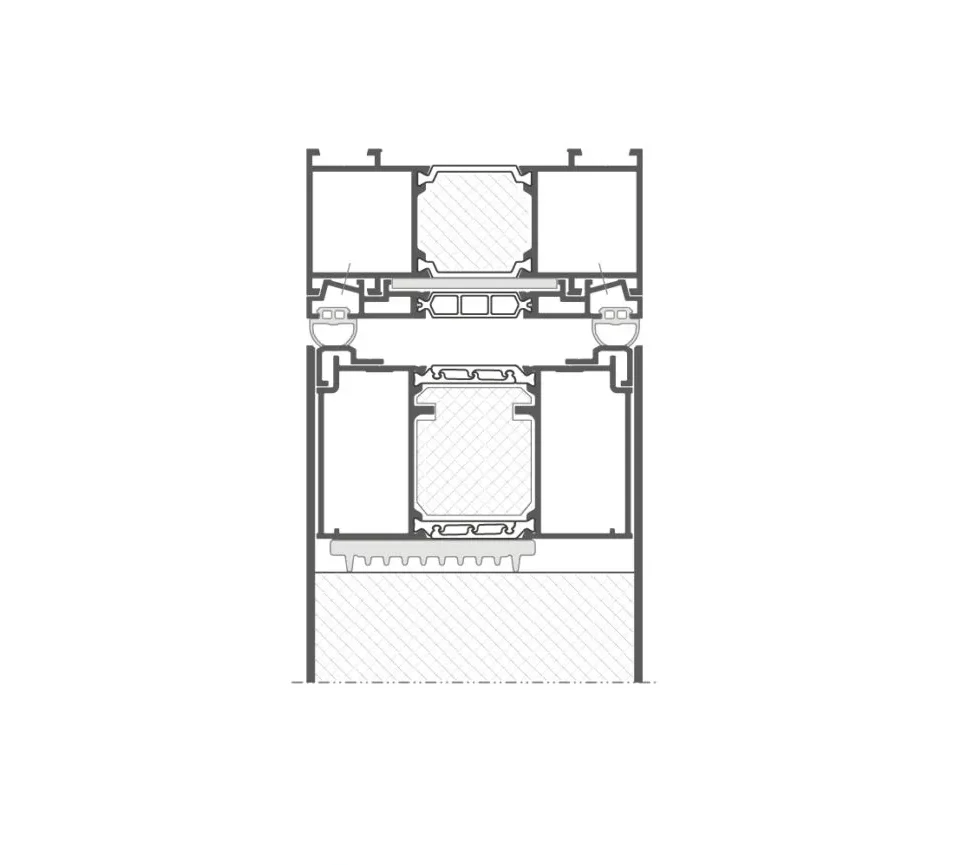

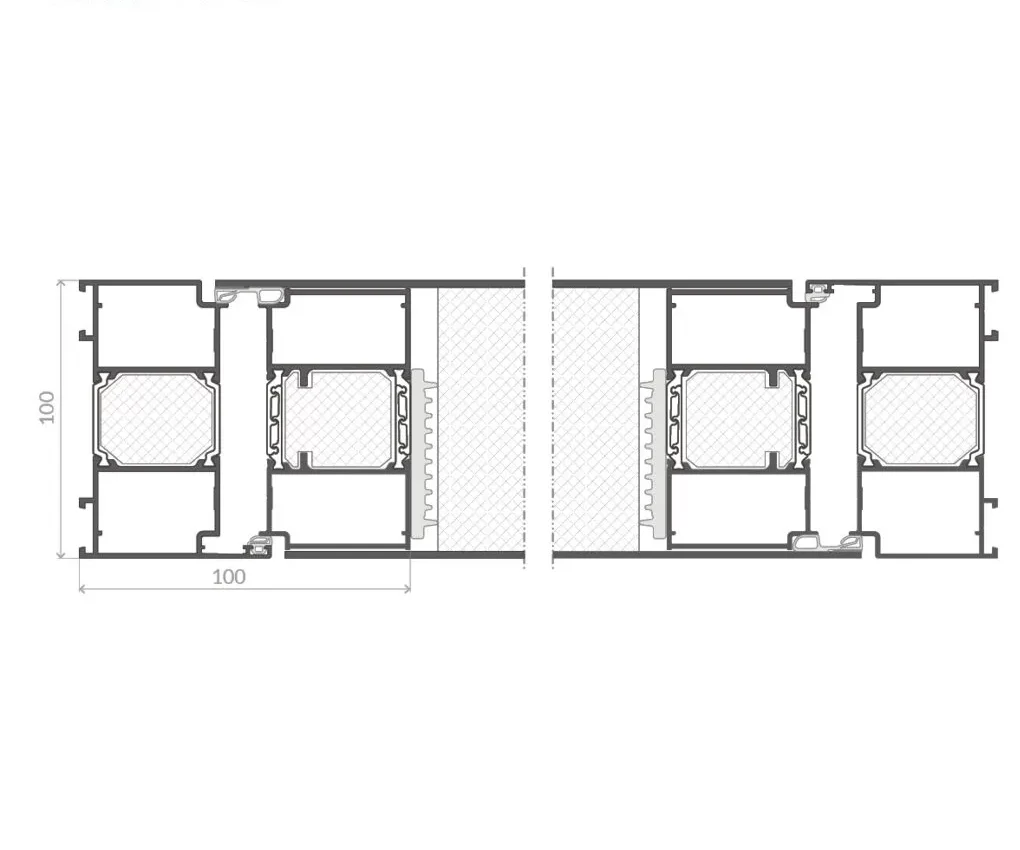

Frame depth – decorative panel |
100 mm |
|
Leaf depth – decorative panel |
94 mm / 97 mm |
|
Max. panel thickness |
100 mm |
|

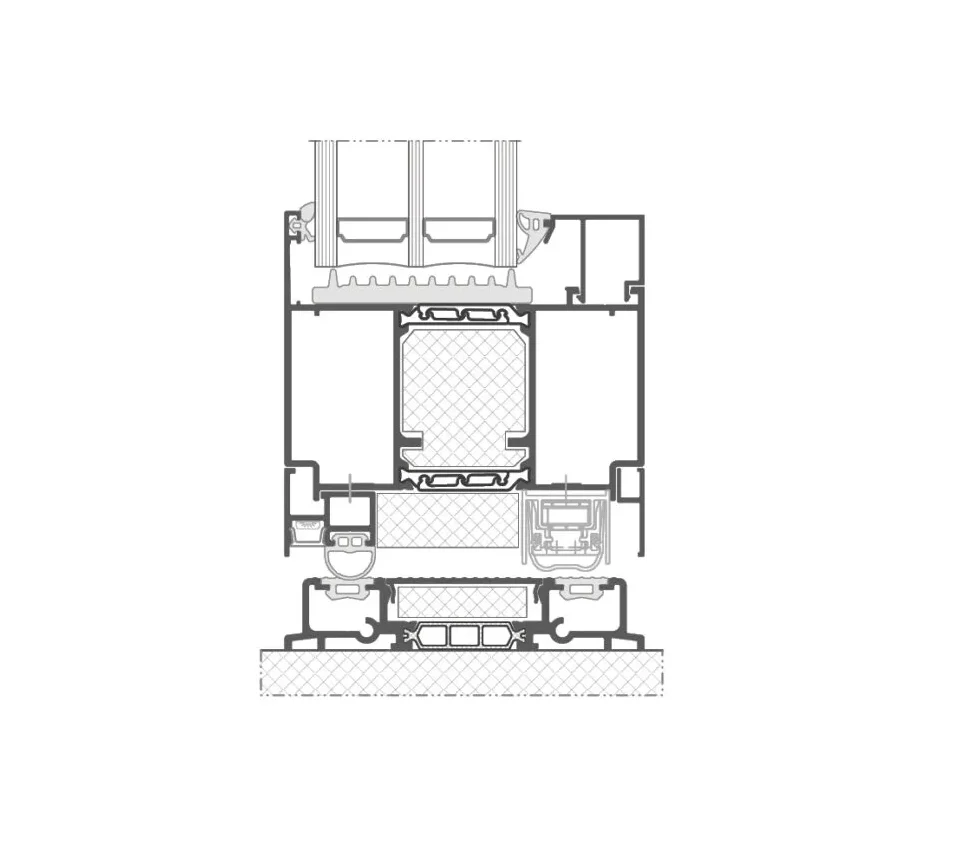

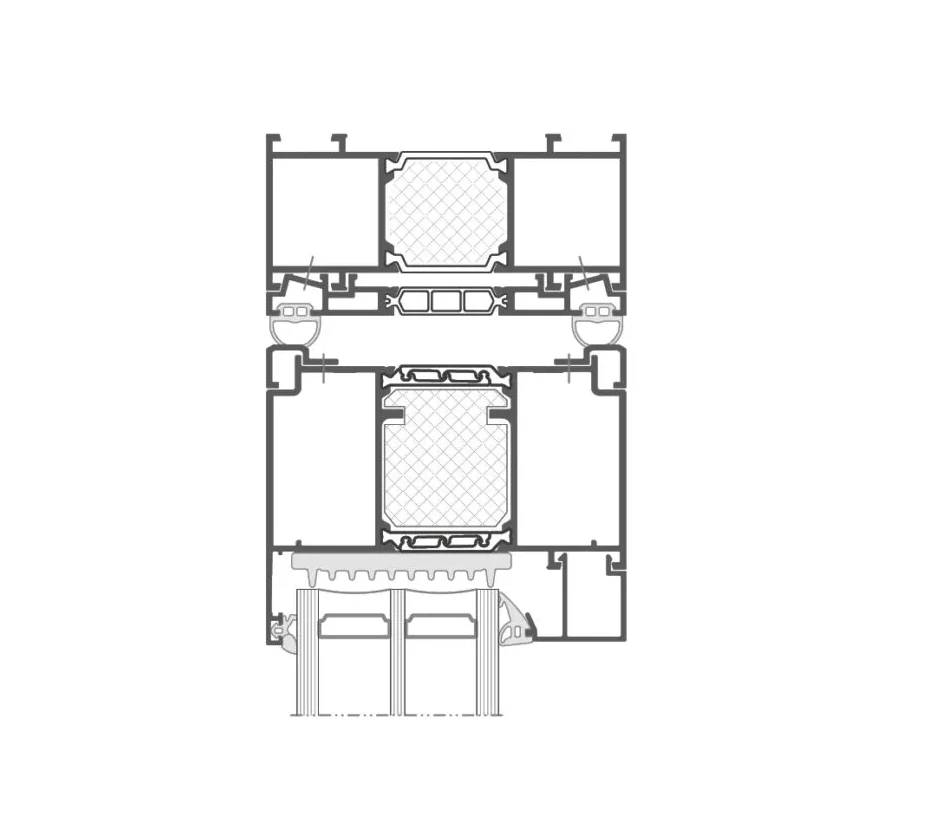

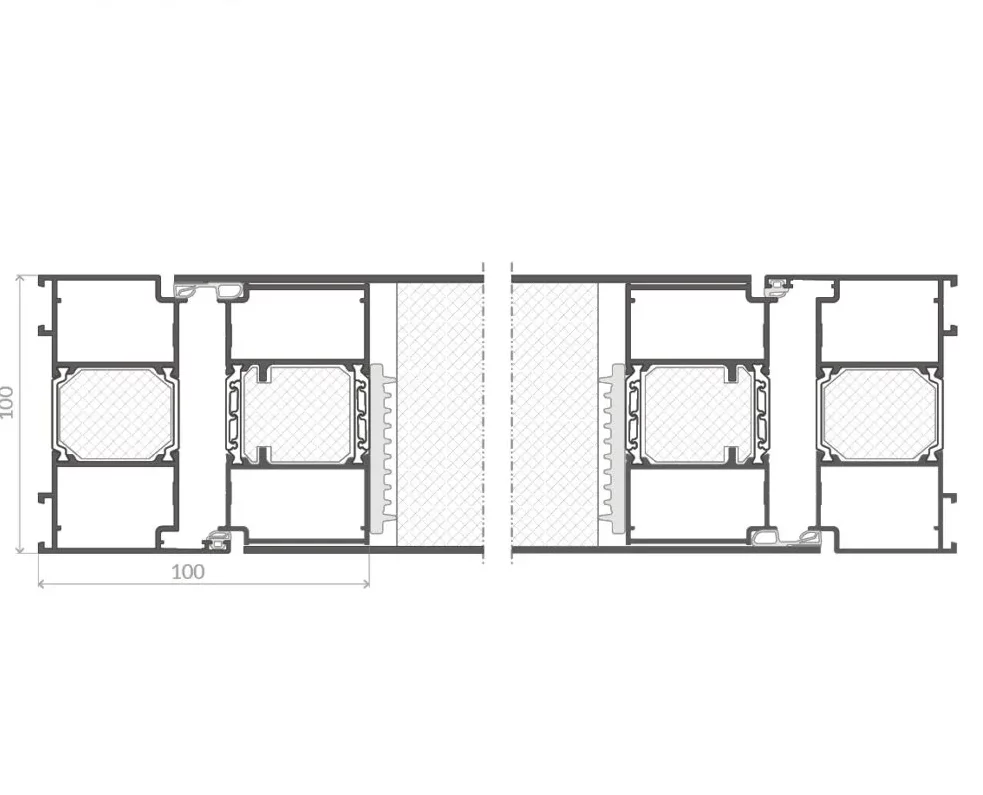

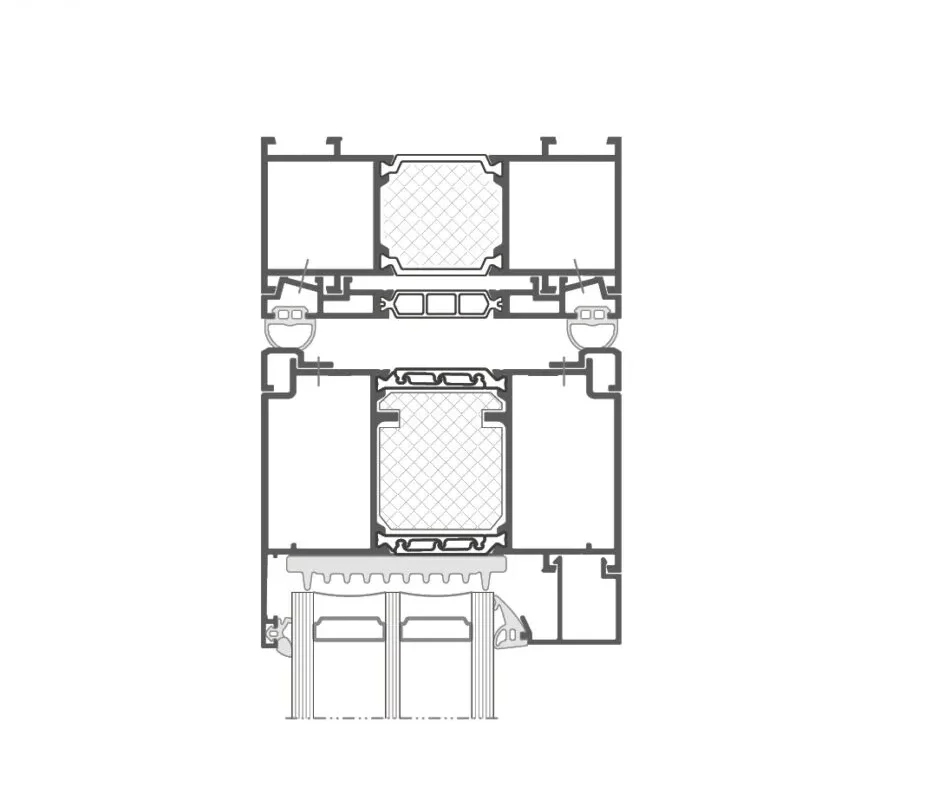

Frame depth – inserted glazing |
100 mm |
|
Glazing range – inserted glazing |
37-80 mm |
|

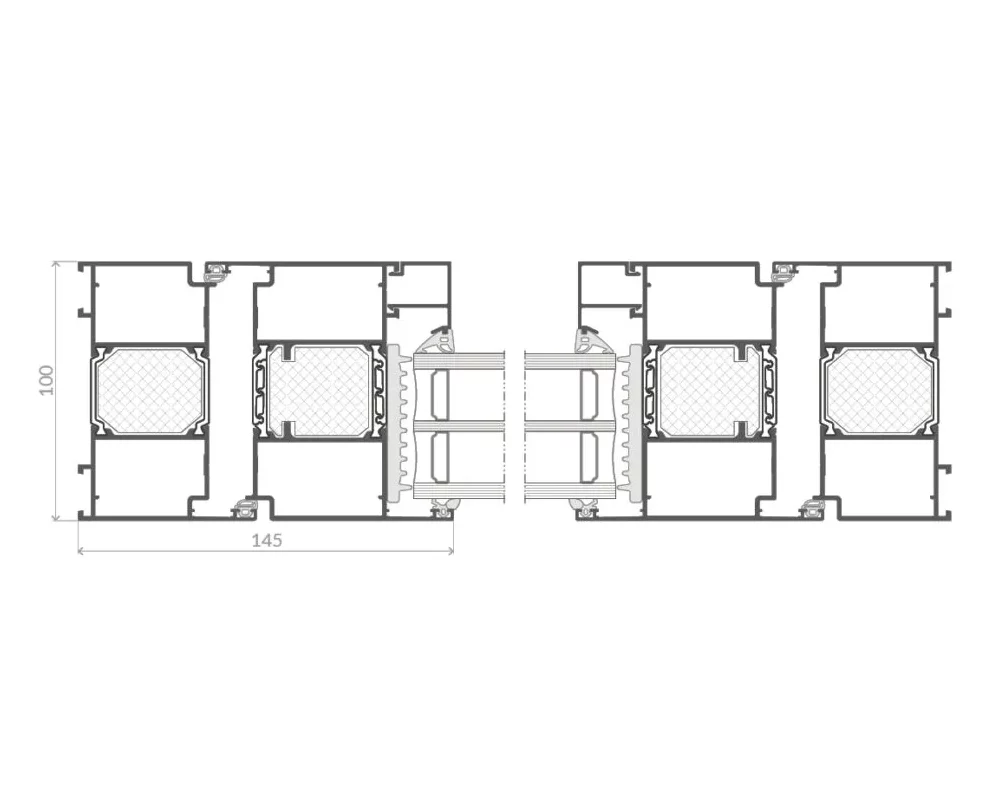

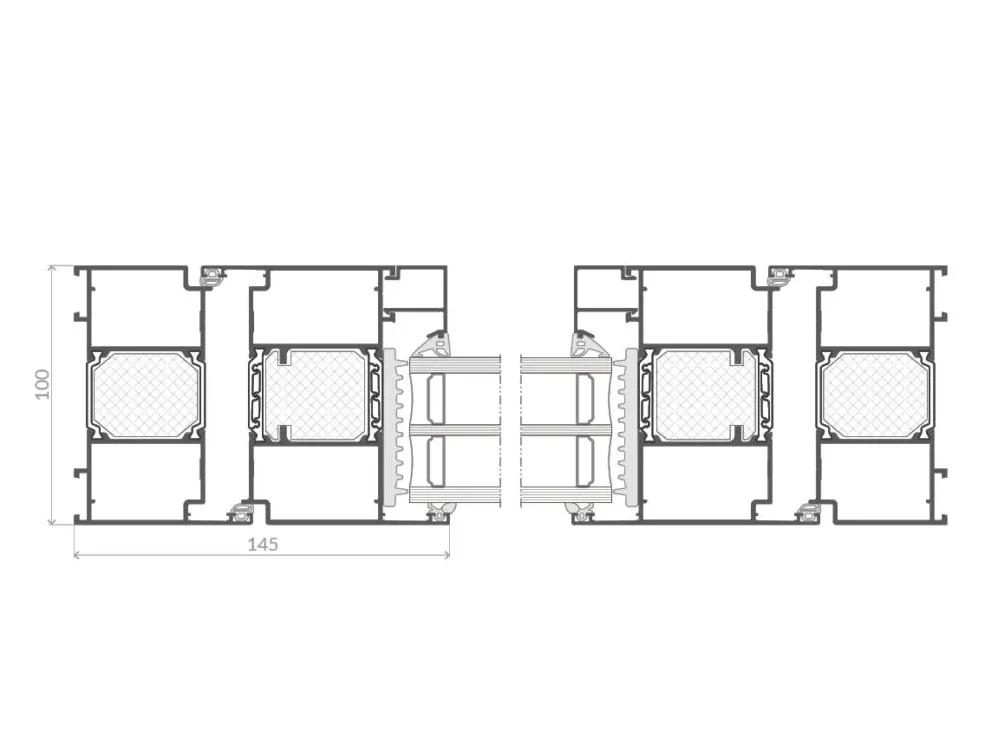

Frame and leaf assembly – inserted glazing |
145 mm |
|

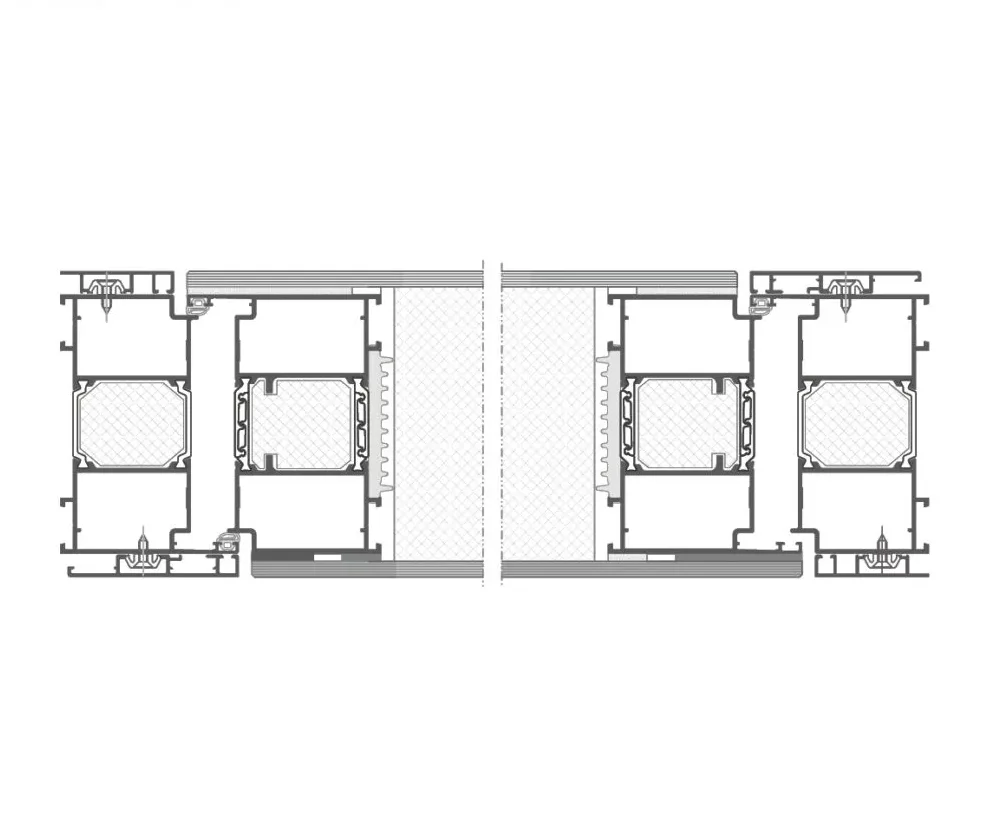

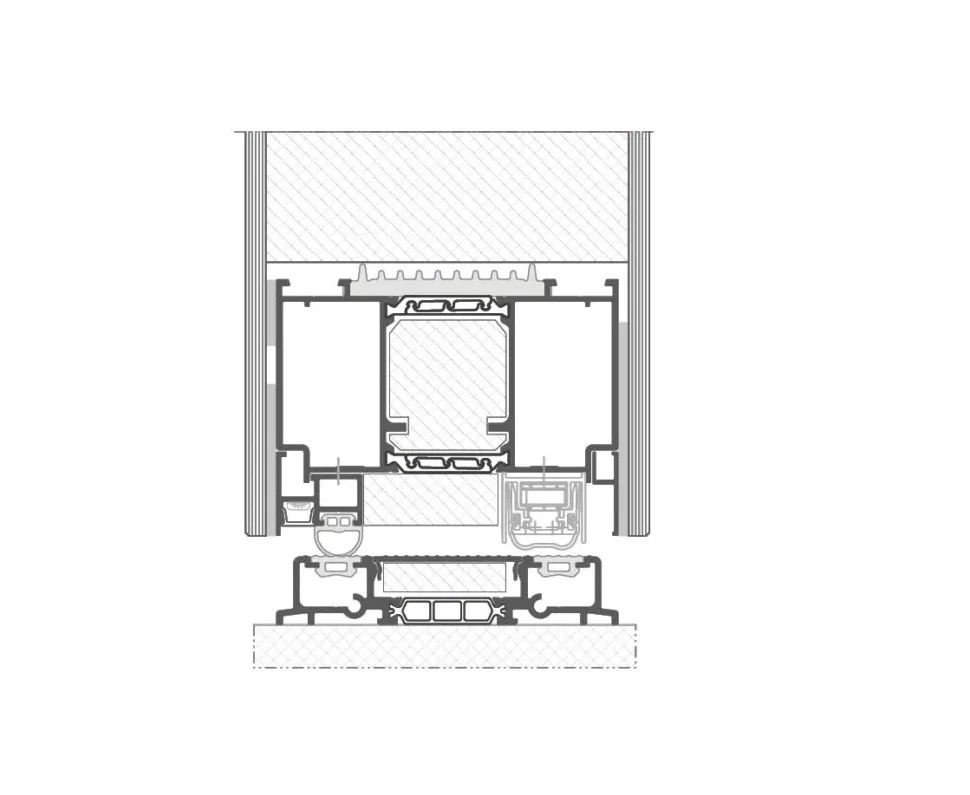

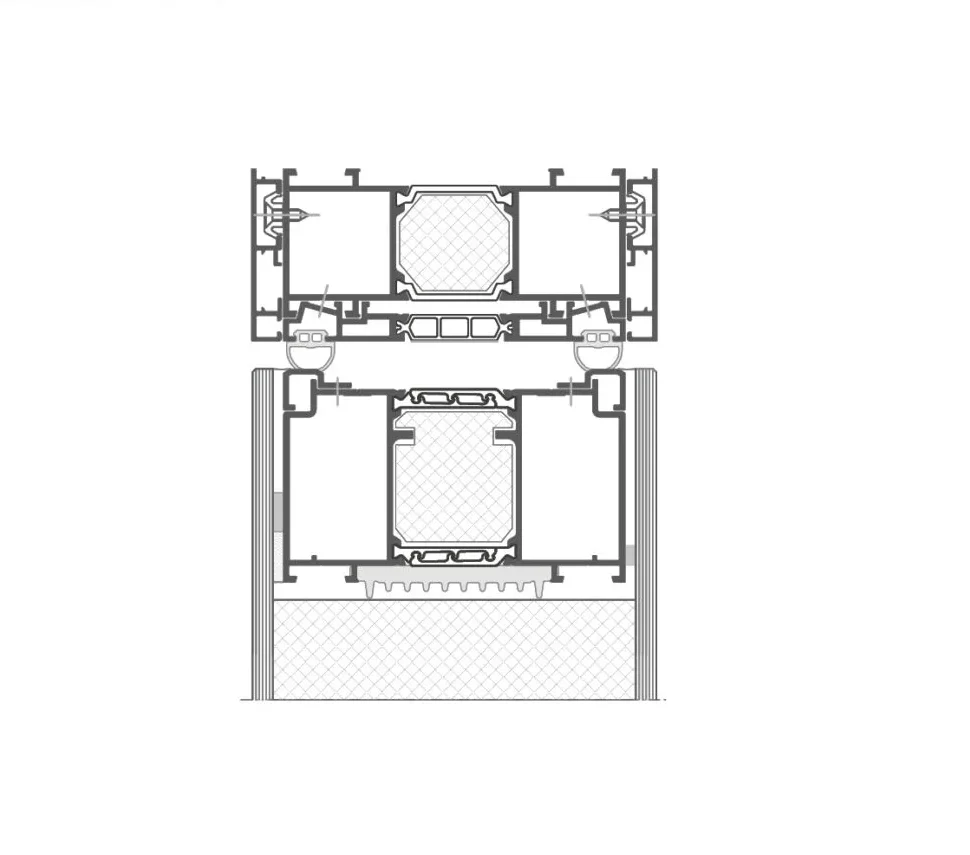

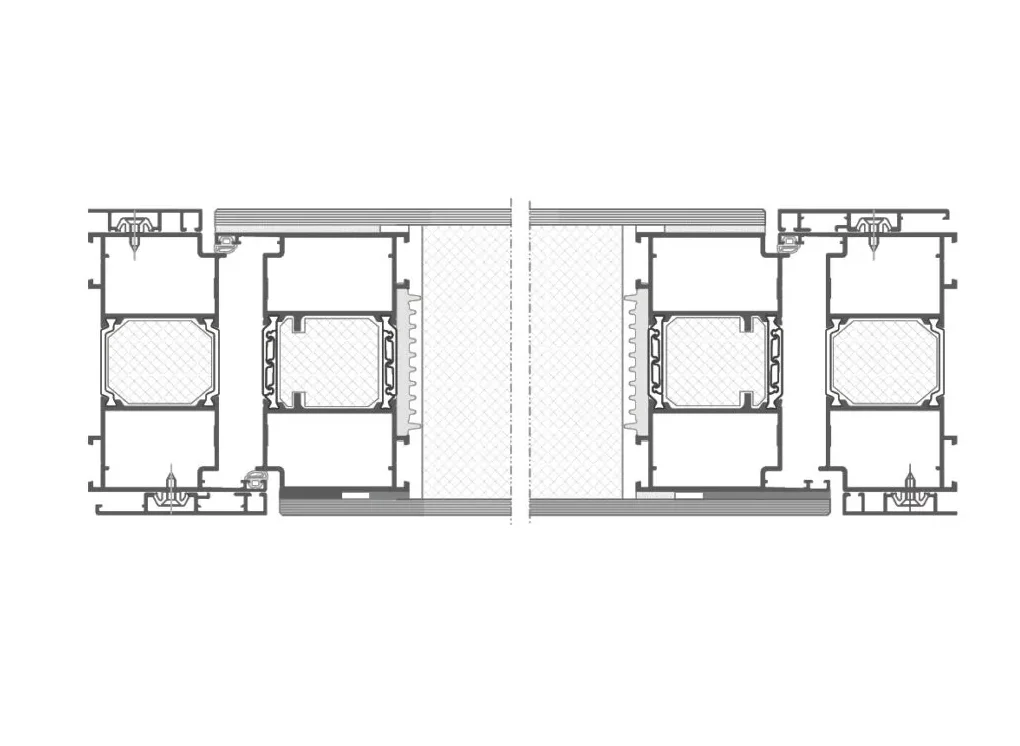

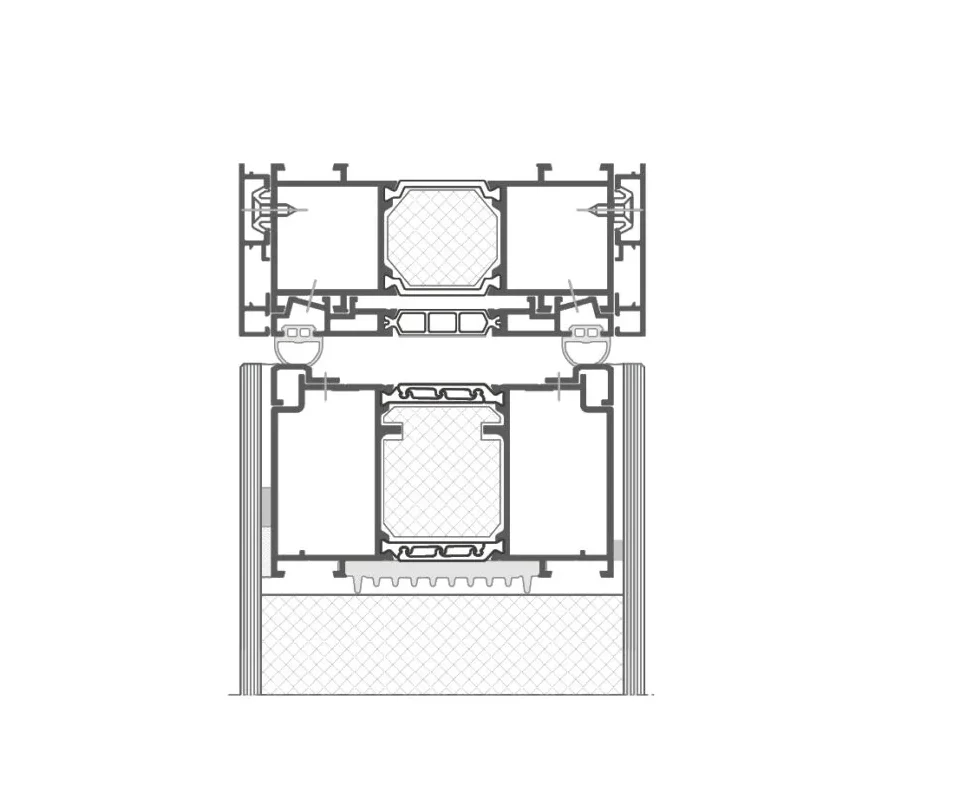

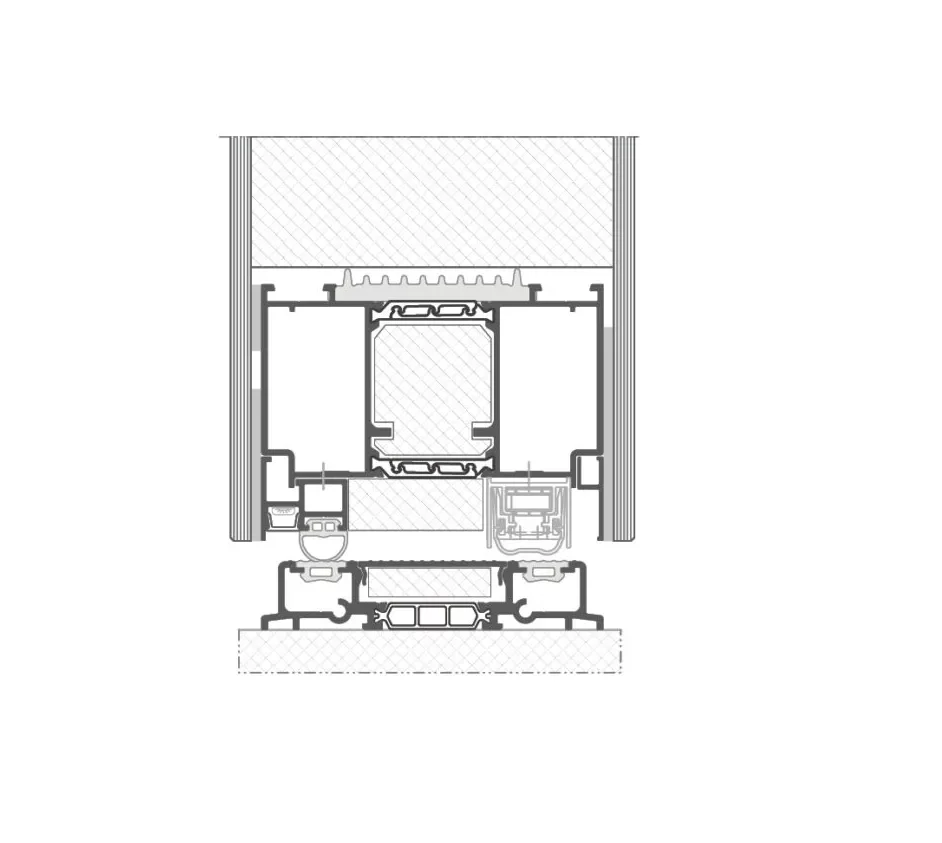

Frame depth – Glass Line variant |
100 mm |
|
Leaf depth – Glass Line variant |
100 mm |
